LTC6081IDD Precision Dual CMOS Rail-to-Rail Input/Output Operational Amplifier with 3.5 MHz Gain Bandwidth

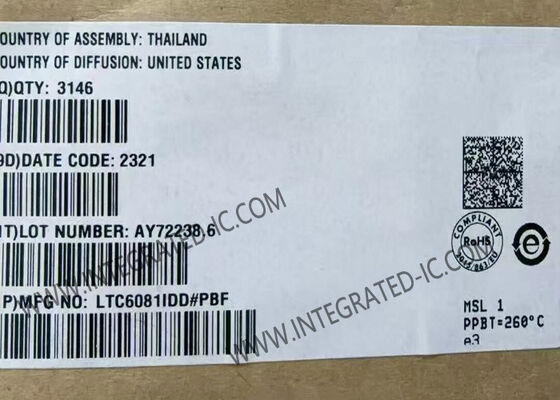

Large Image : LTC6081IDD Precision Dual CMOS Rail-to-Rail Input/Output Operational Amplifier with 3.5 MHz Gain Bandwidth

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LTC6081IDD

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	DFN-10
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

LTC6081IDD Precision Dual CMOS Rail-to-Rail Input/Output Operational Amplifier with 3.5 MHz Gain Bandwidth

Description

Part Number:	LTC6081IDD	Amplifier Type:	CMOS
Number Of Circuits:	2	Output Type:	Rail-to-Rail
Slew Rate:	1V/µs	Gain Bandwidth Product:	3.5 MHz
Highlight:	Rail-to-Rail Input/Output Operational Amplifier , Precision Dual CMOS Amplifier , 3.5 MHz Gain Bandwidth Integrated Circuit Chip

LTC6081IDD Integrated Circuit Chip Precision Dual CMOS Rail-To-Rail Input/Output Amplifiers

The LTC6081 is a dual low offset, low drift, low noise CMOS operational amplifier with rail-to-rail input/output swing. With 70μV maximum offset, 1pA input bias current, 120dB open loop gain and 1.3μVP-P 0.1Hz to 10Hz noise, it is ideal for precision signal conditioning. The LTC6081/LTC6082 features 100dB CMRR and 98dB PSRR.

Each amplifier consumes only 330μA of current on a 3V supply. The 10-lead DFN package includes an independent shutdown function that reduces each amplifier's supply current to 1μA.

Specifications Of LTC6081

Parameter	Value
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	3.6 MHz
SR - Slew Rate	1 V/μs
Vos - Input Offset Voltage	90 μV
Ib - Input Bias Current	200 fA
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Operating Supply Current	330 μA
Output Current per Channel	17 mA
CMRR - Common Mode Rejection Ratio	105 dB
en - Input Voltage Noise Density	13 nV/√Hz
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+85 °C
In - Input Noise Current Density	0.0005 pA
Input Type	Rail-to-Rail
Ios - Input Offset Current	100 fA
Output Type	Rail-to-Rail
PSRR - Power Supply Rejection Ratio	110 dB
Settling Time	6 ns
Technology	CMOS
Voltage Gain dB	60 dB
Unit Weight	200 mg

Key Features Of LTC6081

Maximum Offset Voltage: 70μV (25°C)
Maximum Offset Drift: 0.8μV/°C
Maximum Input Bias: 1pA (25°C) 40pA (TA ≤ 85°C)
Open Loop Voltage Gain: 120dB Typ
Gain Bandwidth Product: 3.6MHz
CMRR: 100dB Min
PSRR: 98dB Min
0.1Hz to 10Hz Noise: 1.3μVP-P
Supply Current: 330μA
Rail-to-Rail Inputs and Outputs
Unity Gain Stable
2.7V to 5.5V Operation Voltage

Applications Of LTC6081

Photodiode Amplifier
Strain Gauge
High Impedance Sensor Amplifier
Microvolt Accuracy Threshold Detection
Instrumentation Amplifiers
Thermocouple Amplifiers
