ASM3074 USB Controller 20G USB 3.2 Hub Controller with 4 Downstream Ports and Low-Power Design

ASM3074 USB Controller 20G USB 3.2 Hub Controller with 4 Downstream Ports and Low-Power Design
ASM3074 USB Controller 20G USB 3.2 Hub Controller with 4 Downstream Ports and Low-Power Design

Large Image :  ASM3074 USB Controller 20G USB 3.2 Hub Controller with 4 Downstream Ports and Low-Power Design

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ASM3074
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-88
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

ASM3074 USB Controller 20G USB 3.2 Hub Controller with 4 Downstream Ports and Low-Power Design

Description
Highlight:

20G USB 3.2 USB Controller

,

4 downstream ports USB Hub Controller

,

Low-power Integrated Circuit Chip

ASM3074 Integrated Circuit Chip USB Controller 20G USB 3.2 Hub Controller QFN-88

ASM3074 Integrated Circuit Chip USB Controller 20G USB 3.2 Hub Controller QFN-88

ASM3074 is a USB 3.2 compliant hub that supports 4 downstream ports, offering a low-power and cost-effective solution for various USB applications. The ASM3074 is fully compliant with USB 3.2 Specification Revision 1.0 and USB Battery Charging Specification Revision 1.2.

USB 3.2 Gen2x2 HUB Features Of ASM3074
  • Compliant with USB 3.2 specification Revision 1.0
  • Upstream port supports USB 3.2 Gen2x2 20Gbps with CC logic implemented, High-Speed and Full-Speed Connections
  • 4 downstream ports support USB3.2 Gen2x1 10Gbps, High-Speed, Full-Speed and Low-Speed Connections
  • Implements USB 3.0 power management function
  • SuperSpeed Link Power Management support
  • USB 2.0 Link Power Management support
  • USB Attached SCSI Protocol Revision 1.0 Compliance
  • Multiple Transaction Translator support
  • Port Power Switching and Over-Current Protection per port control
  • Individual or Gang mode selectable via strapping
  • Can be defined as removable or permanently attached
Battery Charging Features Of ASM3074
  • Charging Downstream Ports support USB-C 5V/3A with an external CC logic chip
  • Supports battery charging of most battery powered devices on all ports
  • USB-IF Battery Charging rev. 1.2 support (DCP, CDP & SDP)
  • Supports portable devices such as iPad and cellphones
  • Supports automatic Battery Charger Detection
  • Supports charging while the system enters the active or suspended state
General Features Of ASM3074
  • Integrated 8-bit microprocessor
  • SPI flash support for customized firmware
  • External I2C EEPROM for customized configuration
  • Firmware & configuration capable of being uploaded via the upstream port
  • Integrated 5V to 3.3V LDO
  • Supports self-powered and bus-powered modes
  • Automatic power type detection and dynamic power type switch
  • Supports 25 MHz X'tal as clock source
  • Multiple GPIOs for LED applications
  • Two Power Supply domains
  • IO power supply with 3.3V+/-0.3V and 2.5V +/-0.2V
  • Core power supply 1.05V+/-0.05V
  • 10x10 mm2 88-pin QFN package
  • Green Package with RoHS compliance

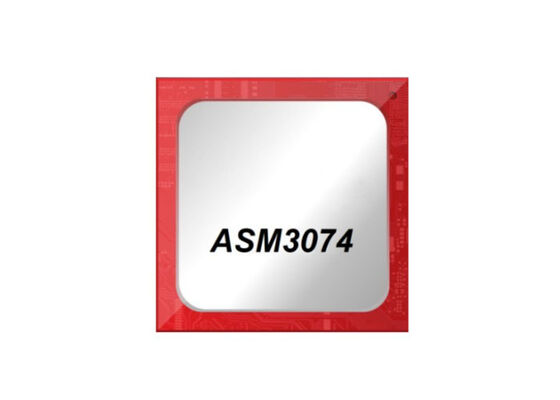

Product Photo Of ASM3074
ASM3074 Integrated Circuit Chip USB Controller
