ASM1153E Integrated Circuit Chip USB to SATA Bridge Controller with 5G SATA Device and QFN-48L Package

ASM1153E Integrated Circuit Chip USB to SATA Bridge Controller with 5G SATA Device and QFN-48L Package
ASM1153E Integrated Circuit Chip USB to SATA Bridge Controller with 5G SATA Device and QFN-48L Package

Large Image :  ASM1153E Integrated Circuit Chip USB to SATA Bridge Controller with 5G SATA Device and QFN-48L Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ASM1153E
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-48L
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

ASM1153E Integrated Circuit Chip USB to SATA Bridge Controller with 5G SATA Device and QFN-48L Package

Description
Highlight:

5G SATA Device Integrated Circuit Chip

,

USB3.0 to SATA Bridge USB to SATA Bridge Controller

,

QFN-48L Package ASM1153E

ASM1153 Integrated Circuit Chip 5G SATA Device USB3.0 To SATA Bridge Controller QFN-48L
Product Overview Of ASM1153

ASM1153 is a highly integrated bridge controller that connects USB3.2 Gen1 to Serial SATA host interface. It features SuperSpeed USB3.2 Gen1, High Speed USB2.0 and SATA1.5/3.0/6.0 Gbps ASMedia self-designed PHYs. The chip uses advanced process technology to optimize power consumption while maintaining excellent compatibility with USB3.2 host and SATA devices.

Key Features Of ASM1153
  • Compliant with USB3.0 Specification Revision 1.0
  • Compliant with USB Specification Revision 2.0
  • Support USB Super-Speed, High-Speed and Full-Speed Operation
  • Support Mass Storage Class, Bulk-Only Transport Specification Revision 1.3
  • Support USB Attached SCSI Protocol Specification Revision 1.0
  • Compliant with Serial ATA Specification Revision 3.0
  • Serial ATA bus up to 6Gbps Signal bandwidth
  • Support Spread Spectrum Control of USB3.0 and SATA interface to improve EMI Performance
  • Support ATA/ATAPI Packet Command Set
  • Support ATA/ATAPI LBA48 addressing mode
  • Integrated 8-bit micro-processor with embedded program RAM and ROM
  • Support SPI NVRAM for Vender Specific Application of USB device Controller
  • Support multi-GPIO pins
  • Support programmable PWMs
  • Support 20/25/30MHz with external crystal mode or 30MHz with Clock input mode via strapping
  • Integrated two internal voltage regulator for IO power and Core
  • HBM ESD 2KV and MM ESD 200V
  • Green Package 6X6 QFN 48L (Pb-free)

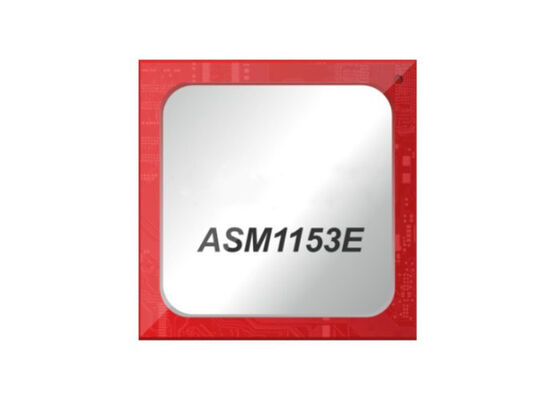

Product Image Of ASM1153
ASM1153E Integrated Circuit Chip - QFN-48L Package
