VNL5090S5TR-E Fully Protected Low-Side Driver IC Chip with 13A Output for Automotive Applications

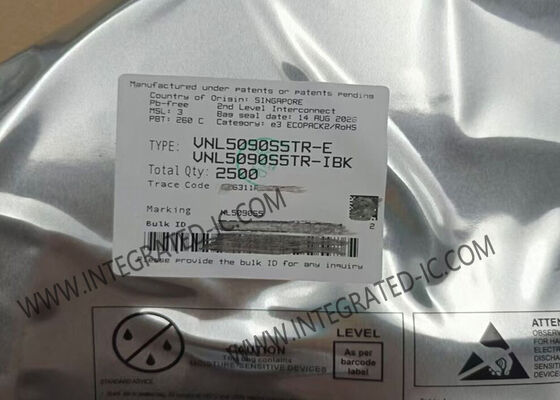

Large Image : VNL5090S5TR-E Fully Protected Low-Side Driver IC Chip with 13A Output for Automotive Applications

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	VNL5090S5TR-E

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	8-SOIC
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

VNL5090S5TR-E Fully Protected Low-Side Driver IC Chip with 13A Output for Automotive Applications

Description

Part Number:	VNL5090S5TR-E	Number Of Outputs:	1
Ratio - Input:Output:	1:1	Voltage - Load:	36V (Max)
Current - Output (Max):	13A	Rds On (Typ):	90mOhm (Max)
Highlight:	Fully Protected Low-Side Driver , 13A Output IC Chip , Automotive Applications Integrated Circuit Chip

VNL5090S5TR-E Integrated Circuit Chip Fully Protected Low-Side Driver For Automotive Applications

Product Overview Of VNL5090S5

VNL5090S5 is a monolithic device manufactured using VIPower® technology, designed for driving resistive or inductive loads with one side connected to the battery. Built-in thermal shutdown protects the chip from overtemperature and short-circuit conditions.

Output current limitation safeguards the device during overload situations. In cases of prolonged overload, the device restricts dissipated power to safe levels until thermal shutdown intervenes. Thermal shutdown with automatic restart enables the device to resume normal operation once fault conditions are resolved. Fast demagnetization of inductive loads is achieved during turn-off.

Specifications Of VNL5090S5

Type	Low-Side
Number of Drivers	1 Driver
Number of Outputs	1 Output
Output Current	13 A
Supply Voltage - Min	3.5 V
Supply Voltage - Max	5.5 V
Rise Time	10 μs
Fall Time	10 μs
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+150°C

Key Features Of VNL5090S5

AEC-Q100 qualified
Drain current: 13 A
ESD protection
Overvoltage clamp
Thermal shutdown
Current and power limitation
Very low standby current
Very low electromagnetic susceptibility
Compliant with European directive 2002/95/EC
Open drain status output (VNL5090S5-E only)
Specially intended for 2 x R10W or 4 x R5W automotive signal lamps

Applications Of VNL5090S5

Automotive Applications
