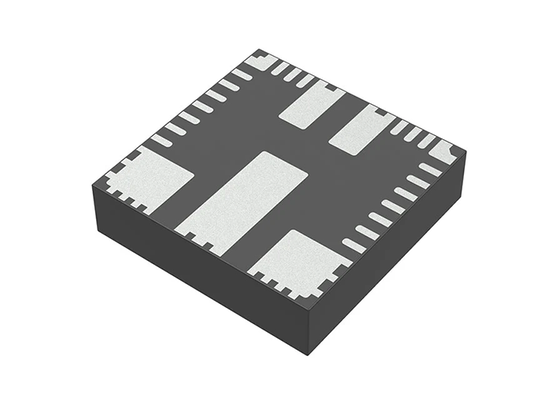

MPM3695GMQ Integrated Circuit Chip 16V 10A Ultra-Thin DC/DC Power Module With PMBus Interface

MPM3695GMQ Integrated Circuit Chip 16V 10A Ultra-Thin DC/DC Power Module With PMBus Interface
MPM3695GMQ Integrated Circuit Chip 16V 10A Ultra-Thin DC/DC Power Module With PMBus Interface

Large Image :  MPM3695GMQ Integrated Circuit Chip 16V 10A Ultra-Thin DC/DC Power Module With PMBus Interface

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MPM3695GMQ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-45
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MPM3695GMQ Integrated Circuit Chip 16V 10A Ultra-Thin DC/DC Power Module With PMBus Interface

Description
Part Number: MPM3695GMQ Number Of Outputs: 1
Voltage - Input (Min): 3.3V Voltage - Input (Max): 16V
Voltage - Output 1: 0.5 ~ 5V Current - Output (Max): 10A
Highlight:

16V 10A Integrated Circuit Chip

,

Ultra-Thin DC/DC Power Module

,

PMBus Interface Power Module

MPM3695GMQ Integrated Circuit Chip 16V 10A Scalable Ultra-Thin DC/DC Power Module With PMBus
Product Overview Of MPM3695

The MPM3695 is a scalable, ultra-thin, fully integrated power module with a PMBus interface. It offers a complete power solution that achieves up to 10A of output current with excellent load and line regulation across a wide input voltage range. The device's 2mm height enables it to be placed on the backside of a PCB for space optimization. It operates at high efficiency over a wide load range, and can be paralleled to deliver higher current.

Specifications Of MPM3695
Parameter Value
Output Voltage 500 mV to 5 V
Output Current 10 A
Switching Frequency 800 kHz
Maximum Operating Temperature +70°C
Minimum Operating Temperature 0°C
Key Features Of MPM3695
  • Wide Input Voltage Range from 3.3V
  • 3.3V to 16V Input Voltage with an External VCC Bias
  • 4V to 16V Input Voltage with Internal VCC
  • 0.5V to 5V Output Voltage Range
  • Auto-Interleaving for Multi-Phase Operation
  • Output Voltage Remote Sense
  • PMBus 1.3 Compliant
  • Telemetry Readback including VIN, VOUT, IOUT, Temperature, and Faults
  • Configurable via the PMBus interface: Output Voltage, Soft-Start Time, OC, OT, OV, UV, and UVLO Limits, PWM Mode and Switching Frequency
  • Available in an LGA-45 (8mmx8mmx2mm) Package
Applications Of MPM3695
  • Telecom and Networking Systems
  • Industrial Equipment
  • Servers and Computing
  • FPGA and ASIC Core Power
