MPM3695GBH Integrated Circuit Chip 16V 100A DC/DC Power Module With PMBus Interface

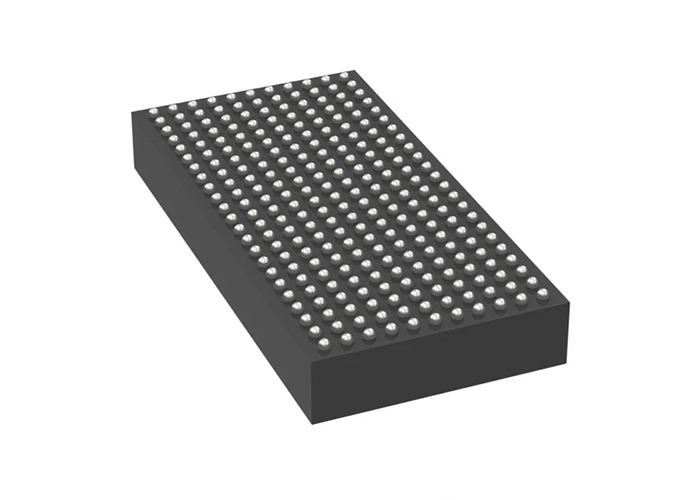

Large Image : MPM3695GBH Integrated Circuit Chip 16V 100A DC/DC Power Module With PMBus Interface

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MPM3695GBH

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA-253
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

MPM3695GBH Integrated Circuit Chip 16V 100A DC/DC Power Module With PMBus Interface

Description

Part Number:	MPM3695GBH	Number Of Outputs:	1
Voltage - Input (Min):	3.2V	Voltage - Input (Max):	16V
Voltage - Output 1:	0.5 ~ 3.3V	Current - Output (Max):	100A
Highlight:	16V Integrated Circuit Chip , 100A DC/DC Power Module , PMBus Interface MPM3695GBH

MPM3695GBH Integrated Circuit Chip 16V 100A Scalable DC/DC Power Module With PMBus

The MPM3695 is a 100A, scalable, fully integrated power module with a PMBus interface. This device offers a complete power solution that achieves up to 100A of output current, with excellent load and line regulation across a wide input voltage range. The MPM3695-100 operates at high efficiency across a wide load range and can be paralleled to deliver up to 800A of current.

Specifications Of MPM3695

Output Voltage	500 mV to 3.3 V
Output Current	60 A, 100 A
Switching Frequency	600 kHz
Dimensions	30.1 mm x 15.1 mm x 4.68 mm
Fall Time	300 ns
Load Regulation	0.5 %
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C

Key Features Of MPM3695

3.2V to 16V Input Voltage Range with External 3.3V VCC Bias
4V to 16V Input Voltage Range with Internal VCC Bias
0.5V to 3.3V Output Voltage Range
100A Continuous Current for Outputs Up to 1.8V
60A Continuous Current for 3.3V Output
Parallelable Up to 800A with Active Current Balancing
Auto-Interleaving for Parallel Operation
Output Voltage Remote Sensing
±1% Reference Voltage Accuracy (-40°C to +125°C)
PMBus 1.3 Compliant
Telemetry Readback including VIN, VOUT, IOUT, Temperature, and Faults
Configurable via PMBus for output voltage, soft-start time, protection limits, PWM mode, and switching frequency
Available in BGA (15mmx30mmx5.18mm) Package

Applications Of MPM3695

Telecom and Networking Systems
Industrial Equipment
Servers and Computing
FPGA and ASIC Core Power
