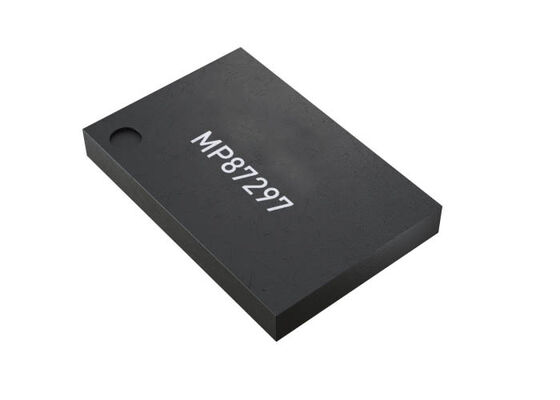

MP87297GMWTH Integrated Circuit Chip 100A DrMOS Solution with Quiet Switcher Technology and 3V-16V Input Voltage

MP87297GMWTH Integrated Circuit Chip 100A DrMOS Solution with Quiet Switcher Technology and 3V-16V Input Voltage
MP87297GMWTH Integrated Circuit Chip 100A DrMOS Solution with Quiet Switcher Technology and 3V-16V Input Voltage MP87297GMWTH Integrated Circuit Chip 100A DrMOS Solution with Quiet Switcher Technology and 3V-16V Input Voltage

Large Image :  MP87297GMWTH Integrated Circuit Chip 100A DrMOS Solution with Quiet Switcher Technology and 3V-16V Input Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP87297GMWTH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TLGA-34
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MP87297GMWTH Integrated Circuit Chip 100A DrMOS Solution with Quiet Switcher Technology and 3V-16V Input Voltage

Description
Part Number: MP87297GMWTH Number Of Outputs: 1
Voltage - Input (Min): 3V Voltage - Input (Max): 16V
Current - Output (Max): 100A PWM Logic: 3.3V
Highlight:

100A Output Current Integrated Circuit Chip

,

Quiet Switcher Technology DrMOS Solution

,

3V to 16V Input Voltage IC Chip

MP87297GMWTH Integrated Circuit Chip 100A Intelli-Phase DrMOS Solution With Quiet Switcher Technology
Product Description Of MP87297

The MP87297 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. It achieves up to 100A of continuous output current (IOUT) across a wide input supply voltage (VIN) range, operating from 100kHz to 1.5MHz.

This device offers comprehensive features to simplify system design. It works with tri-state pulse-width modulation (PWM) signal controllers and includes Accu-Sense™ current-sensing and temperature-sensing to monitor inductor current (IL) and report junction temperature (TJ), respectively.

The MP87297 is ideal for server applications where efficiency and compact size are critical. Available in a TLGA-34 (4mm x 6mm) package.

Key Features Of MP87297
  • Quiet Switcher™ Technology (QST™) limits peak switching voltages with minimal PCB layout dependency
  • Wide 3V to 16V operating input voltage (VIN) range
  • 100A output current (IOUT) capability
  • 5V VDD and VDRV operation
  • Accu-Sense™ current sense (CS) technology
  • Integrated temperature sensing
  • Accepts tri-state pulse-width modulation (PWM) signals
  • Comprehensive current-limit protection
  • Over-temperature protection (OTP)
  • Advanced fault reporting system
  • Available in compact TLGA-34 (4mm x 6mm) package
Product Identification
MP87297GMWTH, MP87297GMWT, MP87297GMW, MP87297GM, MP87297G, MP87297
