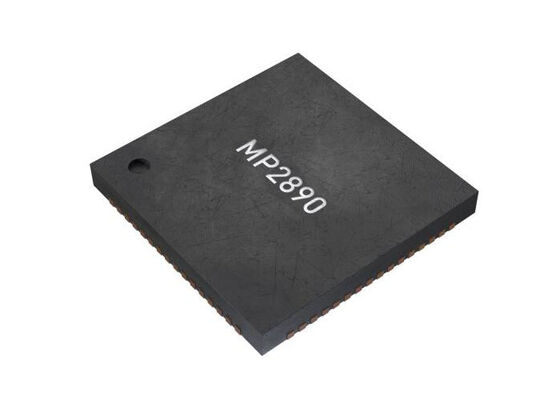

MP2890GQQ Integrated Circuit Chip Digital Controller with Dual-Loop 20-Phase PWM-VID Interface

MP2890GQQ Integrated Circuit Chip Digital Controller with Dual-Loop 20-Phase PWM-VID Interface
MP2890GQQ Integrated Circuit Chip Digital Controller with Dual-Loop 20-Phase PWM-VID Interface

Large Image :  MP2890GQQ Integrated Circuit Chip Digital Controller with Dual-Loop 20-Phase PWM-VID Interface

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP2890GQQ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

MP2890GQQ Integrated Circuit Chip Digital Controller with Dual-Loop 20-Phase PWM-VID Interface

Description
Part Number: MP2890GQQ Number Of Phases: 20
Number Of Output Rail: 2 Ishutdown (typ): 0.25mA
Interfaces: PWM-VID/AVSBus Package: QFN-64 (8mm X 8mm)
Highlight:

Dual-Loop Integrated Circuit Chip

,

20-Phase Digital Controller

,

PWM-VID Interface Power Management IC

MP2890GQQ Integrated Circuit Chip Dual-Loop 20-Phase Digital Controller With PWM-VID Interface
Product Overview Of MP2890

MP2890 is a dual-rail, digital, multi-phase controller that provides power pulse-width modulation voltage identification (PWM-VID) core power. It is also compliant with the AVSBus interface. The MP2890 can work with MPS's Intelli-Phase™ products to complete the multi-phase voltage regulator (VR) solution with minimum external components.

Specifications Of MP2890
Number of Output Rail 2
Number of Phases 20
VCC (min) (V) 3.1
VCC (max) (V) 3.5
Iq (typ) (mA) 50
Ishutdown (typ) (mA) 0.25
fsw (min) (kHz) 100
fsw (max) (kHz) 1000
Interfaces PWM-VID/AVSBus
Processor Type ASIC, CPU/GPU
Package (mm) QFN-64 (8x8)
Key Features Of MP2890
  • Up to 20-Phase, Dual-Output, Digital Controller
  • Pulse-Width Modulation Voltage Identification (PWM-VID) Compatible with OpenVReg Specifications (OVRi4+)
  • Supports AVSBus Rev. 1.3
  • PMBus/I2C Compliant (1MHz Bus Speed)
  • Pin-Configurable for PMBus Address
  • Built-In Non-Volatile Memory (NVM) to Store Configurations
  • 200kHz to 3MHz Switching Frequency (fSW)
  • Automatic Loop Compensation
  • Coupled Inductor Mode
  • Supports Multi-Configuration for 6 Different Applications
  • Flexible PWM Assignment for Two Rails
  • Automatic Phase-Shedding (APS) to Improve Overall Efficiency
  • Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
  • Input Voltage (VIN), Output Voltage (VOUT), Current, and Power Monitoring
  • VIN Under-Voltage Lockout (UVLO), Output Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with No Action, Latch, or Hiccup Options
  • Intelli-Phase™ Fault Diagnosis
  • Automatically Records Voltage Regulator (VR) Fault Type to the NVM
  • Digital Load-Line Regulation
  • Overclocking Mode by Adding Offset to VOUT
  • Available in a QFN-64 (8mmx8mm) Package
