MP2882AGQNT 16-Phase Dual-Loop Digital Controller IC Chip in TQFN-56 Package

MP2882AGQNT 16-Phase Dual-Loop Digital Controller IC Chip in TQFN-56 Package
MP2882AGQNT 16-Phase Dual-Loop Digital Controller IC Chip in TQFN-56 Package

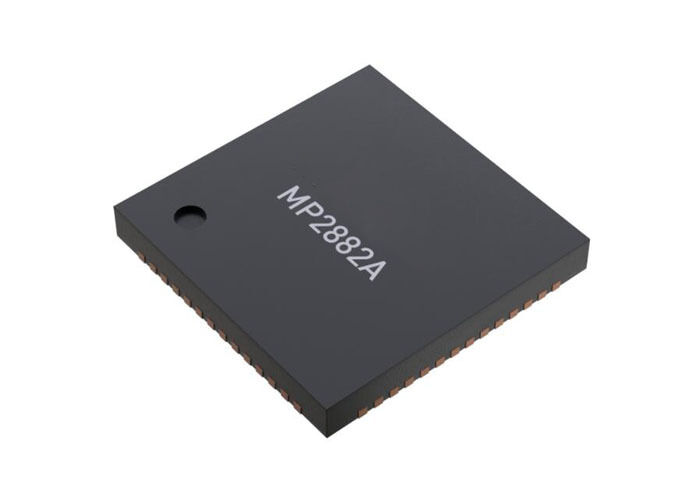

Large Image :  MP2882AGQNT 16-Phase Dual-Loop Digital Controller IC Chip in TQFN-56 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP2882AGQNT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFN-56
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

MP2882AGQNT 16-Phase Dual-Loop Digital Controller IC Chip in TQFN-56 Package

Description
Part Number: MP2882AGQNT Number Of Phases: 16
Number Of Output Rail: 2 Ishutdown (typ): 0.15mA
Interfaces: AVSBus, PMBus/I2C Package: TQFN-56 (7mm X 7mm)
Highlight:

16-Phase Integrated Circuit Chip

,

Dual-Loop IC Chip

,

TQFN-56 Digital Controller

MP2882AGQNT Integrated Circuit Chip 55mA Dual-Loop Digital 16-Phase Controller TQFN-56
Product Overview Of MP2882

MP2882A is a dual-loop, digital, multi-phase controller that provides power for memory and system-on-chip (SoC) applications. The device works with MPS's Intelli-Phase™ products to complete multi-phase voltage regulator (VR) solutions with minimal external components. The MP2882A can be configured for up to 16-phase operation on rail 1 and up to 8-phase operation on rail 2.

Specifications Of MP2882
Number of Output Rails 2
Number of Phases 16
VCC (min) (V) 3.15
VCC (max) (V) 3.45
Iq (typ) (mA) 55
Ishutdown (typ) (mA) 0.15
fsw (min) (kHz) 200
fsw (max) (kHz) 3000
Interfaces AVSBus, PMBus/I2C
Processor Type ASIC, CPU/GPU
Package (mm) TQFN-56 (7x7)
Key Features Of MP2882
  • Multi-Phase, Dual-Output Digital Controller
  • PMBus/I2C Compatible (1MHz Bus Speed)
  • AVSBus Compatible
  • N + 2 Phase Redundancy Function
  • Pin-Configurable PMBus Address
  • Built-In Non-Voltage Memory (NVM) to Store Custom Configurations
  • Can Support 16 Rails with Register Setting
  • 200kHz to 3MHz Switching Frequency (fSW)
  • Automatic Loop Compensation
  • Fewer External Components than Conventional Analog Controllers
  • Best Transient Performance with Nonlinear Digital Control
  • Flexible Phase Assignment for Dual Rails
  • Automatic Phase-Shedding (APS) to Improve Overall Efficiency
  • Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
  • Input Voltage (VIN), Output Voltage (VOUT), Current, and Power Monitoring
  • Regulator Temperature Monitoring
  • Comprehensive Protection Features: VIN UVLO, VOUT OVP/UVP, OCP, OTP
  • Fast Over-Current Warning Response
  • Intelli-Phase™ Fault Diagnostics
  • Black-Box Recording in NVM
  • Digital Load-Line Regulation
  • Available in TQFN-56 (7mmx7mm) Package
Applications Of MP2882
  • SoC/CPU/GPU Power
  • AI Power
  • Telecom and Networking Systems
  • Base Stations
