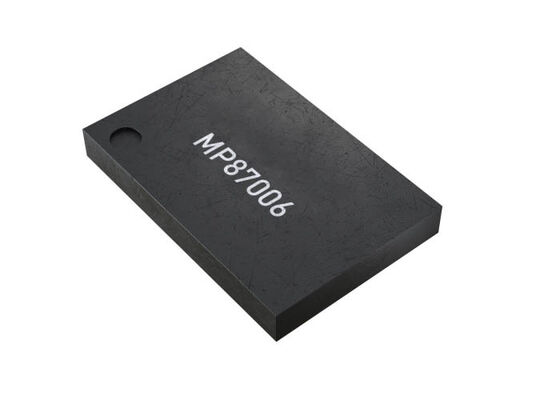

MP87006GMWTH Integrated Circuit Chip 90A DrMOS Solution with Quiet Switcher Technology and 3V to 16V Input Range

MP87006GMWTH Integrated Circuit Chip 90A DrMOS Solution with Quiet Switcher Technology and 3V to 16V Input Range
MP87006GMWTH Integrated Circuit Chip 90A DrMOS Solution with Quiet Switcher Technology and 3V to 16V Input Range MP87006GMWTH Integrated Circuit Chip 90A DrMOS Solution with Quiet Switcher Technology and 3V to 16V Input Range

Large Image :  MP87006GMWTH Integrated Circuit Chip 90A DrMOS Solution with Quiet Switcher Technology and 3V to 16V Input Range

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP87006GMWTH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TLGA-34
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MP87006GMWTH Integrated Circuit Chip 90A DrMOS Solution with Quiet Switcher Technology and 3V to 16V Input Range

Description
Part Number: MP87006GMWTH Number Of Outputs: 1
Voltage - Input (Min): 3V Voltage - Input (Max): 16V
Current - Output (Max): 90A PWM Logic: 3.3V
Highlight:

90A Output Current Integrated Circuit Chip

,

Quiet Switcher Technology DrMOS Solution

,

3V to 16V Input Range IC Chip

MP87006GMWTH Integrated Circuit Chip 90A Intelli-Phase DrMOS Solution With Quiet Switcher Technology
Product Overview Of MP87006

The MP87006 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. The MP87006 achieves 90A of continuous output current (IOUT) across a wide input supply range.

Quiet Switcher™ technology (QST™) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages to less than 3V above the input voltage (VIN), improves device reliability, lowers EMI emissions, and reduces sensitivity to the PCB layout.

The MP87006 offers many features to simplify system design. The MP87006 works with controllers with a tri-state pulse-width modulation (PWM) signal, and comes with an accurate current sense to monitor the inductor current (IL) and temperature sense to report the junction temperature (TJ).

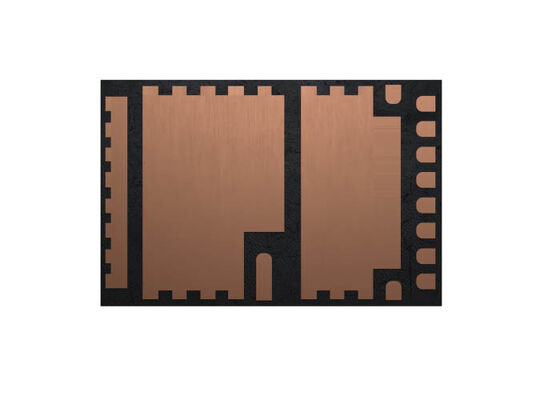

The MP87006 is ideal for server applications where efficiency and small size are at a premium. The MP87006 is available in a TLGA-34 (4mmx6mm) package.

Key Features Of MP87006
  • Quiet Switcher™ Technology (QST™) Limits Peak Switching Voltages to <3V Above Input Voltage (VIN) with Minimal Dependency on PCB Layout
  • Wide 3V to 16V Operating Input Range
  • 90A Output Current (IOUT)
  • Current Sense: Accu-Sense™
  • Temperature Sense
  • Accepts Tri-State Pulse-Width Modulation (PWM) Signal
  • Current-Limit Protection
  • Over-Temperature Protection (OTP)
  • Fault Reporting
  • Available in a TLGA-35 (4mmx6mm) Package
Product Identification
MP87006GMWTH, MP87006GMWT, MP87006GMW, MP87006GM, MP87006G, MP87006
Related Products
Part Number Package
8V19N882NVGI8 QFN-76
RAA214020GNP DFN-10
F0453CLFGK8 LGA-32
F6923AVRI8 BGA-23
F6513SAVGI8 BGA-62
R5F11FLKANA HVQFN-64
R5F11FLLDNA HVQFN-64
R5F11FLJANA HVQFN-64
R5F11FLKDNA HVQFN-64
R5F11FLLANA HVQFN-64
F2977NEGK8 VFQFP-12
8A34043E-000NBG QFN-48
F1421NLGK8 QFN-24
RAA270205 BGA
F1350NBGI8 TQFN-36
F1358NBGI8 TQFN-36
F1653NLGI8 TQFN-24
F1912NCGI8 QFN-20
F1951NBGI8 QFN-24
F1956NBGI8 QFN-32
F1958NBGK8 QFN-24
F1975NCGI8 QFN-20
F1977NBGI8 QFN-32
F1978NCGK8 TQFN-20
F2250NLGK8 QFN-16
F2255NLGK8 QFN-16
F2270NLGK8 QFN-16
F5280AVGK8 BGA-49
RA81F5701GAVG BGA-49
F6121SAVGI8 BGA-63
