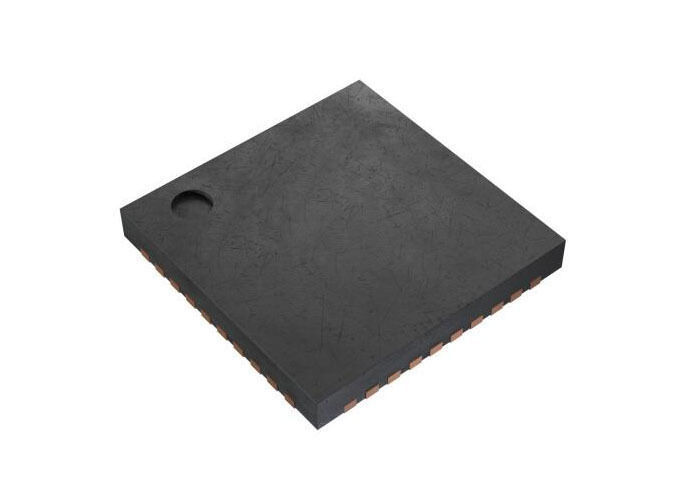

MP2853GU Integrated Circuit Chip 5-Phase Dual-Loop Digital Controller With PMBus Interface
Product Overview Of MP2853
MP2853 is a dual-loop, digital, multi-phase controller that provides power for the core of the AMD SVI 2.0 platform. The MP2853 can be configured with up to 4-phase operation for Rail 1 and up to 2-phase operation for Rail 2.
MP2853 provides an on-chip EEPROM to store and restore device configurations. Device configurations and fault parameters can be programmed easily or monitored via the PMBus™/I2C interface. The MP2853 can monitor and report output current through the CS output from Intelli-Phase products.
Specifications Of MP2853
| Number of Output Rail |
2 |
| Number of Phases |
5 |
| VCC (min) (V) |
3 |
| VCC (max) (V) |
3.6 |
| Iq (typ) (mA) |
34 |
| Ishutdown (typ) (mA) |
0.11 |
| fsw (min) (kHz) |
200 |
| fsw (max) (kHz) |
3000 |
| Interfaces |
PMBus, PVID, SVI2 |
| Processor Type |
SVI2 |
| Package (mm) |
QFN-40 (5x5) |
Key Features Of MP2853
- Multi-Phase, Dual-Output, Digital Controller
- AMD SVI 2.0 Compliant
- Supports 3-Bit PVID Mode
- PMBus™/I2C Compliant (1MHz Bus Speed)
- Pin Programmable for PMBus™ Address
- Built-In EEPROM to Store Custom Configurations
- Switching Frequency Range from 200kHz to 3MHz
- Digital Load-Line Regulation
- Over-Clocking Mode by Adding Offset to Output Voltage
- Automatic Loop Compensation
- Fewer External Components than a Conventional Analog Controller
- Best Transient Performance with Non-Linear Digital Control
- Flexible Phase Assignment for Dual Rails
- Auto-Phase Shedding to Improve Overall Efficiency
- Phase-to-Phase Active Current Balancing with Programmable Offsets for Thermal Balance
- Input and Output Voltage, Current, and Power Monitoring
- Regulator Temperature Monitoring
- VIN UVLO, Output OVP/UVP, OCP_TDC/OCP_SPIKE, OTP with No Action, Latch, Retry, or Hiccup Options
- Detection for Intelli-Phase MOSFET Fault Type
- Auto-Recording VR Fault Type to EEPROM
- Available in an RoHS Compliant QFN-40 (5mmx5mm) Package
Applications Of MP2853
- AMD Fusion CPU/GPU Core Power
- DDR
- Telecom and Networking Systems
- Base Stations
