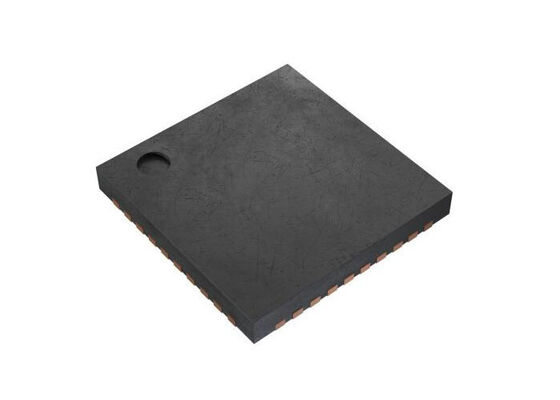

MP2886AGU 6-Phase Digital PWM Controller IC with 200kHz to 5MHz Frequency in QFN-40 Package

MP2886AGU 6-Phase Digital PWM Controller IC with 200kHz to 5MHz Frequency in QFN-40 Package
MP2886AGU 6-Phase Digital PWM Controller IC with 200kHz to 5MHz Frequency in QFN-40 Package

Large Image :  MP2886AGU 6-Phase Digital PWM Controller IC with 200kHz to 5MHz Frequency in QFN-40 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP2886AGU
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-40
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

MP2886AGU 6-Phase Digital PWM Controller IC with 200kHz to 5MHz Frequency in QFN-40 Package

Description
Part Number: MP2886AGU Number Of Output Rail: 1
Number Of Phases: 6 Ishutdown (typ): 0.15mA
Interfaces: PMBus, PWM-VID Package: QFN-40 (5mm X 5mm)
Highlight:

6-Phase PWM Controller

,

200kHz to 5MHz Digital Controller

,

QFN-40 Package Integrated Circuit Chip

MP2886AGU Integrated Circuit Chip 200kHz To 5MHz 6-Phase Digital PWM Controller QFN-40
Product Overview Of MP2886

MP2886A is a digital, multi-phase, pulse-width modulation (PWM) controller with a digital PWM-VID interface that is compatible with Open VReg specification. The MP2886A can be configured with up to 6-phase operation.

MP2886A provides an on-chip EEPROM to store and restore device configurations. Device configurations and fault parameters can be easily programmed or monitored via the PMBus/I2C interface.

Specifications Of MP2886
Number of Output Rail 1
Number of Phases 6
VCC (min) (V) 3
VCC (max) (V) 3.6
Iq (typ) (mA) 30
Ishutdown (typ) (mA) 0.15
fsw (min) (kHz) 200
fsw (max) (kHz) 5000
Interfaces PMBus, PWM-VID
Processor Type ASIC, CPU/GPU, OpenVReg
Package (mm) QFN-40 (5x5)
Key Features Of MP2886
  • Programmable Multi-Phase up to 6 Phases
  • PWM-VID Interface
  • PMBus/I2C Compliant (1MHz Bus Speed)
  • Pin Programmable for PMBus Address
  • Built-In EEPROM to Store Custom Configurations
  • Switching Frequency Range 200kHz to 5MHz
  • Automatic Loop Compensation
  • Fewer External Components than A Conventional Analog Controller
  • Best Transient Performance with Non-Linear Digital Control
  • Flexible Phase Assignment
  • Auto-Phase Shedding to Improve Overall Efficiency
  • Phase-to-Phase Active Current Balancing with Programmable Offsets for Thermal Balance
  • Output Voltage/Current, Input Voltage/Power Monitoring
  • Regulator Temperature Monitoring
  • VIN UVLO, Output OVP/UVP, OCP, OTP with No Action, Latch, Retry, or Hiccup Mode Options
  • Detecting for Intelli-Phase MOSFET Fault Type and Auto-Record to EEPROM
  • Register Map Password Lock
  • Digital Load-Line Regulation
  • Available in an RoHS Compliant QFN-40 (5mmx5mm) Package
Applications Of MP2886
  • Graphic Card Core Power
  • Server Core Power
  • Telecom and Networking Systems
  • Base Stations
