MP87190GMJTH Integrated Circuit Chip 90A Output Current DrMOS Solution With Quiet Switcher Technology And 5V PVCC Operation

The MP87190 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. It achieves up to 90A of continuous output current (IOUT) across a wide input voltage (VIN) supply range.

Quiet Switcher™ technology (QST) utilizes a proprietary circuit design that can only be achieved in a monolithic architecture to suppress voltage ringing. This technology limits the peak switching voltage to <2V above VIN, improving device reliability, lowering EMI, and reducing sensitivity to PCB layout.

The MP87190 offers many features to simplify system design. This device operates with tri-state pulse-width modulation (PWM) signal controllers, and features Accu-Sense™ current sensing and temperature sensing, to monitor the inductor current (IL) and report the junction temperature (TJ), respectively.

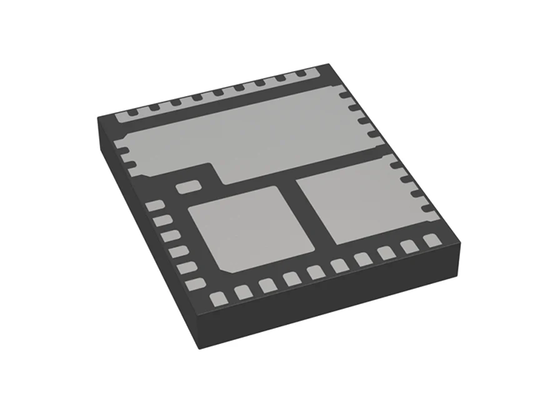

The MP87190 is ideal for server and telecom applications where efficiency and small size are at a premium. The MP87190 is available in a TLGA-41 (5mmx6mm) package.

• Quiet Switcher™ Technology (QST) Limits Peak Switching Voltages to <2V above the Input Voltage (VIN) with Minimal Reliance on PCB Layout
• Wide 3V to 16V Operating VIN Range
• 90A Output Current (IOUT)
• 5V PVCC Operation
• Current Sense: Accu-Sense™
• Temperature Sense
• Accepts Tri-State Pulse-Width Modulation (PWM) Signal
• Current-Limit Protection
• Over-Temperature Protection (OTP)
• Fault Reporting
• Available in a TLGA-41 (5mmx6mm) Package

• Server Core Voltage
• Telecom and Networking Systems
• Power Modules
