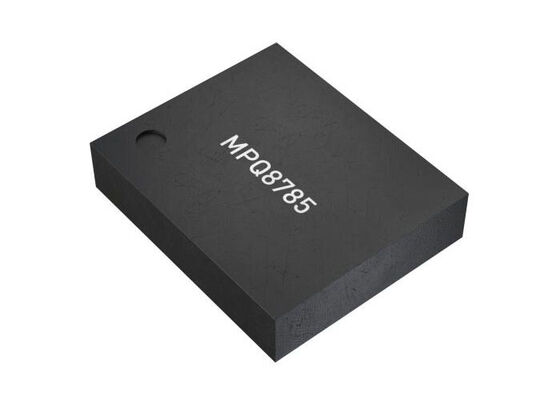

MPQ8785GMJ Integrated Circuit Chip 40A Output Current Synchronous Buck Converter TLGA-37 Package 3.1V to 16V Input Voltage

MPQ8785GMJ Integrated Circuit Chip 40A Output Current Synchronous Buck Converter TLGA-37 Package 3.1V to 16V Input Voltage
MPQ8785GMJ Integrated Circuit Chip 40A Output Current Synchronous Buck Converter TLGA-37 Package 3.1V to 16V Input Voltage

Large Image :  MPQ8785GMJ Integrated Circuit Chip 40A Output Current Synchronous Buck Converter TLGA-37 Package 3.1V to 16V Input Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MPQ8785GMJ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TLGA-37
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

MPQ8785GMJ Integrated Circuit Chip 40A Output Current Synchronous Buck Converter TLGA-37 Package 3.1V to 16V Input Voltage

Description
Part Number: MPQ8785GMJ Current - Output: 40A
Frequency - Switching: 300kHz ~ 2MHz Control Mode: COT Control
Package: TLGA-37 (5mm X 6mm) Operating Temperature: -40°C ~ 125°C (TJ)
Highlight:

40A Output Current Integrated Circuit Chip

,

TLGA-37 Package Synchronous Buck Converter

,

3.1V to 16V Input Voltage PMBus Compliant Converter

MPQ8785GMJ Integrated Circuit Chip 16V 40A Scalable Digital Synchronous Step-Down Converter TLGA-37
Product Overview Of MPQ8785

MPQ8785 is a fully integrated, PMBus-compliant, high-frequency, synchronous buck converter. The device offers a very compact solution that achieves up to 40A of output current (IOUT) per phase, with excellent load and line regulation across a wide input voltage (VIN) supply range. The MPQ8785 operates at a high efficiency across the wide IOUT load range. The PMBus interface provides converter configurations and monitors key parameters.

Specifications Of MPQ8785
Parameter Value
Vin (min) (V) 3.1
Vin (max) (V) 16
Iout (max) (A) 40
Iq (typ) (mA) 18
Vfb (V) 0.6/1.25
fsw (max) (kHz) 800
Control Mode COT Control
Package (mm) TLGA-37 (5x6)
Key Features Of MPQ8785
  • PMBus 1.3 Compliant
  • Scalable Multi-Phase Operation
  • 3.1V to 16V Input Voltage (VIN) with External 3.3V VCC Bias
  • 40A of Continuous Output Current (IOUT)
  • Phase Redundancy to Ensure Uninterrupted Operation
  • Lossless and Accurate On-Die Current Sensing with Auto-Matching
  • Accurate Current Balance Control in Multi-Phase Operation
  • Quiet Switcher™ Technology (QST) to Mitigate Switching Noise
  • Fault Recording (BBOX) to Ease Failure Analysis
  • Automatic PMBus Address Assignment to Provide Auxiliary Phase Data Reading
  • Adaptive Multi-Phase Constant-On-Time (MCOT) Control for Ultra-Fast Transient Response
  • Stable with Zero-ESR Output Capacitors
  • 0.5% Reference Voltage (VREF) across 0°C to 85°C Junction Temperature (TJ) Range
  • 1% VREF across -40°C to +125°C TJ Range
  • Output Voltage (VOUT) Adjustable from 0.35V to 0.9 x VIN, Up to 5.5V Max
  • VOUT, IOUT, VIN, and TJ Reporting
  • Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations with Cyclic Redundancy Check (CRC)/Check Sum
  • Available in a TLGA-37 (5mmx6mm) Package
Applications Of MPQ8785
  • Telecom and Networking Systems
  • Base Stations
  • Servers
