DS2411R Integrated Circuit Chip Silicon Serial Number with 64-bit ROM and 1-Wire Protocol Low-Cost Solution

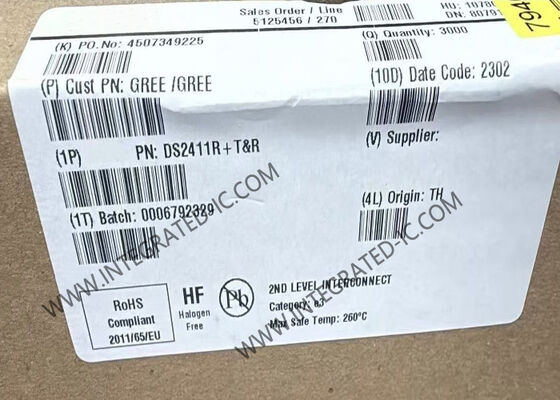

Large Image : DS2411R Integrated Circuit Chip Silicon Serial Number with 64-bit ROM and 1-Wire Protocol Low-Cost Solution

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	DS2411R

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-23-3
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

DS2411R Integrated Circuit Chip Silicon Serial Number with 64-bit ROM and 1-Wire Protocol Low-Cost Solution

Description

Part Number:	DS2411R	Data Bus Width::	64 Bit
Supply Voltage - Max::	5.25 V	Supply Voltage - Min::	1.5 V
Minimum Operating Temperature::	- 40 C	Maximum Operating Temperature::	+ 85 C
Highlight:	64-bit ROM Integrated Circuit Chip , 1-Wire Protocol Silicon Serial Number , Low-Cost DS2411R

DS2411R Integrated Circuit Chip Silicon Serial Number With Or Without VCC Input

Product Overview Of DS2411

The DS2411 silicon serial number is a low-cost, electronic registration number with external power supply. It provides an absolutely unique identity that can be determined with a minimal electronic interface (typically, a single port pin of a microcontroller).

The DS2411's registration number is a 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit family code (01h). Data is transferred serially through the Analog Devices 1-Wire protocol.

For the DS2411, an external power supply is required, extending the operating voltage range of the device below typical 1-Wire devices. The DS2411A does not require an external power supply and has a typical 1-Wire operating voltage range. However, it is functionally equivalent to the DS2411, but with differing electrical parameters.

Specifications Of DS2411

Parameter	Value
Data Bus Width	64 bit
Supply Voltage - Max	5.25 V
Supply Voltage - Min	1.5 V
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+85 °C
Interface Type	1-Wire
Data Rate	125 kb/s
Operating Supply Current	100 µA
Supply Current - Max	100 µA

Key Features Of DS2411

Unique, Factory-Lasered and Tested 64-Bit Registration Number (8-Bit Family Code Plus 48-Bit Serial Number Plus 8-Bit CRC Tester); Guaranteed No Two Parts Alike
Standby Current <1µA
Built-In Multidrop Controller Enables Multiple DS2411s to Reside on a Common 1-Wire Network
Multidrop Compatible with Other 1-Wire Products
8-Bit Family Code Identifies Device as DS2411 to the 1-Wire Master
Low-Cost TSOC, SOT23-3, and Flip-Chip Surface-Mount Packages
Directly Connects to a Single-Port Pin of a Microprocessor and Communicates at up to 15.4kbps
Overdrive Mode Boosts Communication Speed to 125kbps
DS2411 Operating Range: 1.5V to 5.25V (VCC)
DS2411A Operating Range: 3V to 5.25V (noVCC), from -40°C to +85°C

Applications Of DS2411

Accessory/Peripheral Identification
Equipment Registration
Module Identification
Network-Node Identification
PCB Identification
Reference Design License Management
