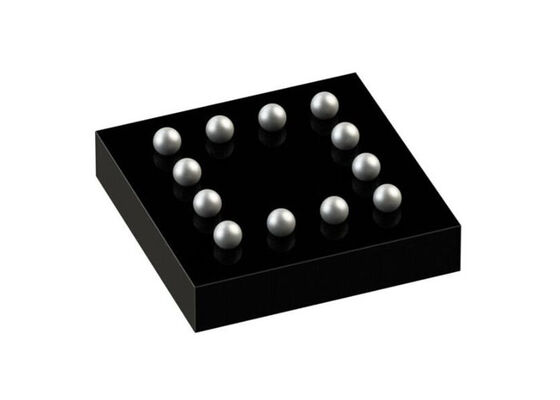

MP8699BGC Integrated Circuit Chip Half-Bridge GaN MOSFET Driver with WLCSP-12L Package and 4.5V to 5.5V Supply Voltage

MP8699BGC Integrated Circuit Chip Half-Bridge GaN MOSFET Driver with WLCSP-12L Package and 4.5V to 5.5V Supply Voltage
MP8699BGC Integrated Circuit Chip Half-Bridge GaN MOSFET Driver with WLCSP-12L Package and 4.5V to 5.5V Supply Voltage

Large Image :  MP8699BGC Integrated Circuit Chip Half-Bridge GaN MOSFET Driver with WLCSP-12L Package and 4.5V to 5.5V Supply Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP8699BGC
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP-12L
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

MP8699BGC Integrated Circuit Chip Half-Bridge GaN MOSFET Driver with WLCSP-12L Package and 4.5V to 5.5V Supply Voltage

Description
Part Number: MP8699BGC Logic Voltage - VIL, VIH: 1.3V, 2.1V
Current - Peak Output (Source, Sink): 1.7A, 5.2A High Side Voltage - Max (Bootstrap): 100 V
Voltage - Supply: 4.5V ~ 5.5V Operating Temperature: -40°C ~ 125°C (TJ)
Highlight:

Half-Bridge GaN MOSFET Driver Integrated Circuit Chip

,

WLCSP-12L Package Gate Driver IC

,

4.5V to 5.5V Supply Voltage MOSFET Driver

MP8699BGC Integrated Circuit Chip Half-Bridge GaN MOSFET Driver WLCSP-12L Gate Driver IC
Product Overview Of MP8699

MP8699 is a MOSFET driver designed to drive enhancement-mode gallium nitride (GaN) MOSFETs and N-channel MOSFETs with low gate voltages in half-bridge or synchronous applications. The device has independent high-side (HS) and low-side (LS) pulse-width modulation (PWM) inputs.

Specifications Of MP8699
trise (ns) 10
tfall (ns) 3
Package (mm) WLCSP-12L (2x2)
VCC (min) (V) 4.5
VCC (max) (V) 5.5
VPWM (V) 5
Driver Channel Half-Bridge
Pull-Down/Pull-Up Resistance (Ω) 5
Key Features Of MP8699
  • Independent High-Side (HS) and Low-Side (LS) Logic Inputs
  • High-Side MOSFET (HS-FET) Floating Bias Voltage Rail Operates Up to 100VDC
  • Separate Gate Outputs for Adjustable Turn-On and Turn-Off Speed Control
  • 4.5V to 5.5V Supply Voltage (VCC) Range
  • 0.2Ω Pull-Down Resistance and 1.3Ω Pull-Up Resistance
  • Fast Propagation Time (Typically 17ns)
  • Excellent Propagation Delay Matching (Typically 1.5ns)
  • Available in a WLCSP-12L (2mmx2mm) Package
Applications Of MP8699
  • Half-Bridge and Full-Bridge Converters
  • Synchronous Buck Converters
  • Power Modules
