E48SC32009NRDH 300W 1/8 Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

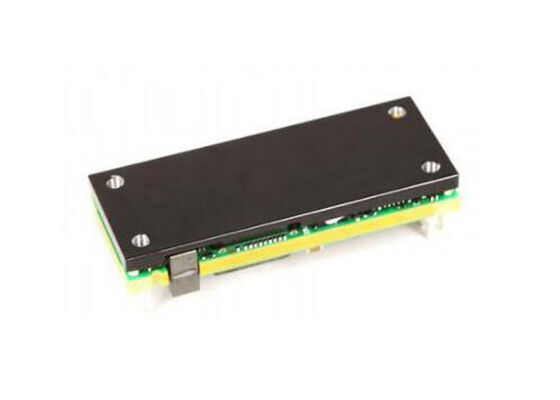

Large Image : E48SC32009NRDH 300W 1/8 Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	E48SC32009NRDH

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 Pieces per Day

Contact Now

E48SC32009NRDH 300W 1/8 Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

Description

Part Number:	E48SC32009NRDH	Power (Watts):	301 W
Voltage - Isolation:	2.25 KV	Number Of Outputs:	1 Output
Package / Case:	Eighth Brick	Operating Temperature:	-40°C ~ 85°C
Highlight:	300W DC/DC Power Module , 1/8 Brick Integrated Circuit Chip , 2.25 kV Isolation DC/DC Power Module

E48SC32009NRDH Integrated Circuit Chip 300W 1/8 Brick DC/DC Regulated Power Module

Product Description Of E48SC32009

The E48SC32009 is an eighth-brick, 36–72V input, single-output 32V isolated DC/DC converter. It delivers up to 300 watts of power within an industry-standard footprint and pin-out. Through innovative design technology and optimized component placement, this converter achieves outstanding electrical and thermal performance alongside extremely high reliability under highly stressful operating conditions.

The E48SC32009 offers peak efficiency of 95% and can be trimmed across a very wide output voltage range. The minimum trim-down output voltage is 16V, or 50% of the nominal output voltage. The module is fully protected against abnormal input/output voltage, current, and temperature conditions, and meets 2250V isolation requirements.

Specifications Of E48SC32009

Product Category	DC/DC Converters – Chassis Mount
Isolation	Isolated
Number of Outputs	1 Output
Output Power	300 W
Output Voltage – Channel 1	32 V
Output Current – Channel 1	9.4 A
Isolation Voltage	2.25 kV
Length	58.4 mm
Width	22.8 mm
Height	12.7 mm
Industry	Industrial
Maximum Operating Temperature	+ 85 ℃
Minimum Operating Temperature	− 40 ℃
Input Voltage	36 V to 72 V

Key Features Of E48SC32009

Peak efficiency up to 95%
Input range: 36–72 Vdc
Vout trim range: 16V to 35V
Output OVP, OCP, Hiccup mode
Input UVP
Over-temperature protection
Remote ON/OFF
80% pre-bias startup
No minimum load required
2250 Vdc isolation

Applications Of E48SC32009

Optical Transport
Data Networking
Communications
Servers
