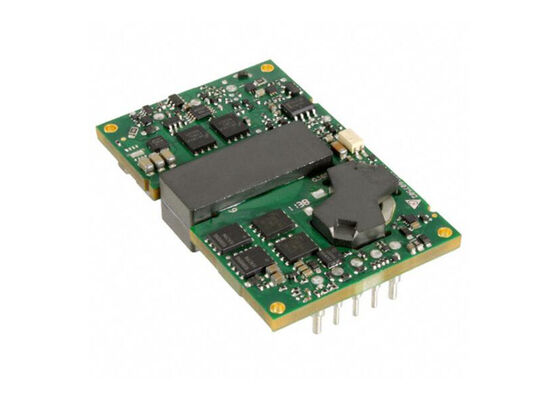

Q36SR10017NRFA 204W DC/DC Power Module Integrated Circuit Chip Quarter Brick 93% Efficiency 18V-75Vin Input

Q36SR10017NRFA 204W DC/DC Power Module Integrated Circuit Chip Quarter Brick 93% Efficiency 18V-75Vin Input
Q36SR10017NRFA 204W DC/DC Power Module Integrated Circuit Chip Quarter Brick 93% Efficiency 18V-75Vin Input

Large Image :  Q36SR10017NRFA 204W DC/DC Power Module Integrated Circuit Chip Quarter Brick 93% Efficiency 18V-75Vin Input

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: Q36SR10017NRFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

Q36SR10017NRFA 204W DC/DC Power Module Integrated Circuit Chip Quarter Brick 93% Efficiency 18V-75Vin Input

Description
Highlight:

204W DC/DC Power Module

,

93% Efficiency Integrated Circuit Chip

,

18V-75Vin Input Quarter Brick DC/DC Converter

Q36SR10017NRFA Integrated Circuit Chip Quarter Brick 204W DC/DC Power Modules



Product Overview Of Q36SR10017

The Q36SR10017NRFA is a quarter-brick, isolated DC/DC converter featuring an 18V to 75V input range and a single output. Through innovative design technology and optimized component placement, this converter delivers outstanding electrical and thermal performance along with extremely high reliability under highly stressful operating conditions. The typical efficiency of the 12V/17A module exceeds 93%.

Key Features Of Q36SR10017
  • High efficiency: 93% @ 12V/17A
  • Industry-standard footprint and pin-out
  • Fixed frequency operation
  • Input UVLO (Under Voltage Lock Out)
  • OTP (Over Temperature Protection) and OVP (Over Voltage Protection)
  • Output OCP (Over Current Protection) hiccup mode
  • Output voltage trim down: −10%
  • Output voltage trim up: +10% at Vin > 20V
  • Monotonic startup into normal and pre-biased loads
  • 1500V/3000V isolation and basic insulation
  • No minimum load required
  • No negative current during power or enable on/off
Applications Of Q36SR10017
  • Optical Transport
  • Data Networking
  • Communications
  • Servers
