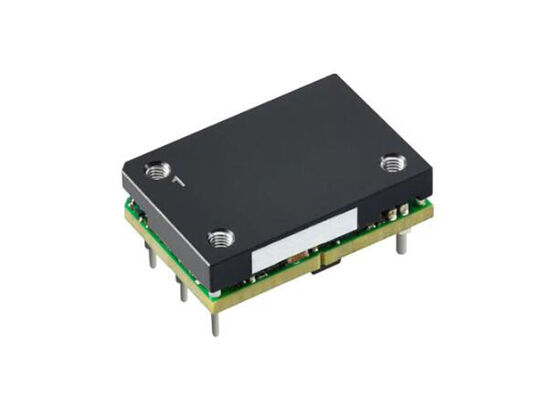

V48SD05024NNFH 120W 1/16 Brick 24A DC DC Power Module Isolated DC DC Converter Integrated Circuit Chip

Large Image : V48SD05024NNFH 120W 1/16 Brick 24A DC DC Power Module Isolated DC DC Converter Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	V48SD05024NNFH

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 Pieces per Day

Contact Now

V48SD05024NNFH 120W 1/16 Brick 24A DC DC Power Module Isolated DC DC Converter Integrated Circuit Chip

Description

Part Number:	V48SD05024NNFH	Number Of Outputs:	1
Current - Output (Max):	24A	Power (Watts):	120 W
Voltage - Isolation:	2.25 KV	Operating Temperature:	-40°C ~ 85°C
Highlight:	120W DC DC Power Module , 1/16 Brick Isolated DC DC Converter , 24A Integrated Circuit Chip

V48SD05024NNFH Integrated Circuit Chip 120W 1/16 Brick DCDC Power Module

Product Description Of V48SD05024

The V48SD05024 is an isolated DC/DC power supply module from the V48SD series, featuring a standard 1/16-brick package with through-hole mounting. This module is primarily designed to convert a 48V DC input into an isolated 5V high-current output for telecommunications and industrial systems. It is well-suited for on-board distributed power architectures.

Specifications Of V48SD05024

Product Category	DC/DC Converters – Through Hole
Isolation	Isolated
Number of Outputs	1 Output
Output Power	120 W
Output Voltage – Channel 1	5 V
Output Current – Channel 1	24 A
Isolation Voltage	2.25 kV
Package / Case	33 mm × 22.8 mm × 12.2 mm
Length	33 mm (1.299 in)
Width	22.8 mm (0.898 in)
Height	12.2 mm (0.48 in)
Industry	Industrial
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	−40 °C
Dimensions	33 mm × 22.8 mm × 12.2 mm
Input Voltage	36 V to 60 V

Features Of V48SD05024

Electrical

High efficiency: 91.9% at full load
Fixed frequency operation
Input UVLO, OTP, and output OCP, OVP
Output voltage trim: max 20%
Pre-biased startup
2250V isolation and basic insulation
Operational at altitudes up to 5000 m

Mechanical

Open-frame: 33.0 mm (L) × 22.8 mm (W) × 9.2 mm (H)
With heat spreader: 33.0 mm (L) × 22.8 mm (W) × 12.2 mm (H)

Soldering Methods

Wave soldering
Hand soldering
Reflow soldering (MSL rating of 3)
