E48SC50006NRDH 300W Eighth Brick DC/DC Power Module Isolated DC/DC Converter with 2.25 kV Isolation

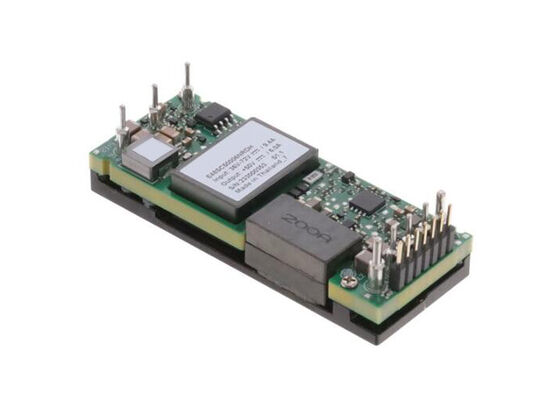

Large Image : E48SC50006NRDH 300W Eighth Brick DC/DC Power Module Isolated DC/DC Converter with 2.25 kV Isolation

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	E48SC50006NRDH

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 Pieces per Day

Contact Now

E48SC50006NRDH 300W Eighth Brick DC/DC Power Module Isolated DC/DC Converter with 2.25 kV Isolation

Description

Part Number:	E48SC50006NRDH	Power (Watts):	300 W
Voltage - Isolation:	2.25 KV	Current - Output (Max):	6A
Package / Case:	Eighth Brick	Operating Temperature:	-40°C ~ 85°C (With Derating)
Highlight:	300W DC/DC Power Module , Eighth Brick Isolated DC/DC Converter , 2.25 kV Isolation DC/DC Power Module

E48SC50006NRDH Integrated Circuit Chip 300W Eighth Brick DC/DC Power Module

Product Description Of E48SC50006

The E48SC50006 is an eighth-brick, isolated DC/DC regulated power converter with a 36–72 V input and a single 50 V output. It delivers up to 300 W of power in an industry-standard footprint and pin-out. Through innovative design technology and optimized component placement, this converter achieves outstanding electrical and thermal performance, along with extremely high reliability under highly stressful operating conditions.

Specifications Of E48SC50006

Product Category	DC/DC Converters – Through Hole
Isolation	Isolated
Number of Outputs	1 Output
Output Power	300 W
Output Voltage – Channel 1	50 V
Output Current – Channel 1	6 A
Isolation Voltage	2.25 kV
Package / Case	1/8 Brick
Length	58.4 mm (2.299 in)
Width	22.8 mm (0.898 in)
Height	12.7 mm (0.5 in)
Industry	Industrial
Maximum Operating Temperature	+ 85 °C
Minimum Operating Temperature	− 40 °C
Dimensions	58.4 mm × 22.8 mm × 12.7 mm
Input Voltage	36 V to 72 V

Key Features Of E48SC50006

Peak efficiency up to 94.7%
Input range: 36–72 Vdc
Vout trim range: 25 V to 55 V
Output OVP, OCP, hiccup mode
Input UVP
Over-temperature protection
Remote ON/OFF
80% pre-bias start-up
No minimum load required
2250 Vdc isolation

Applications Of E48SC50006

Optical Transport
Data Networking
Communications
Servers
