V36SE05010NRFA 50W 1/16th Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

V36SE05010NRFA 50W 1/16th Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation
V36SE05010NRFA 50W 1/16th Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

Large Image :  V36SE05010NRFA 50W 1/16th Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: V36SE05010NRFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

V36SE05010NRFA 50W 1/16th Brick DC/DC Power Module Integrated Circuit Chip with 2.25 kV Isolation

Description
Part Number: V36SE05010NRFA Power (Watts): 50 W
Voltage - Isolation: 2.25 KV Number Of Outputs: 1 Output
Package / Case: 8-DIP Module, 1/16 Brick Operating Temperature: -40°C ~ 119°C
Highlight:

50W DC/DC Power Module

,

1/16th Brick Integrated Circuit Chip

,

2.25 kV Isolation DC/DC Power Module

V36SE05010NRFA Integrated Circuit Chip 50W 1/16th Brick DC/DC Power Module



Product Description Of V36SE05010

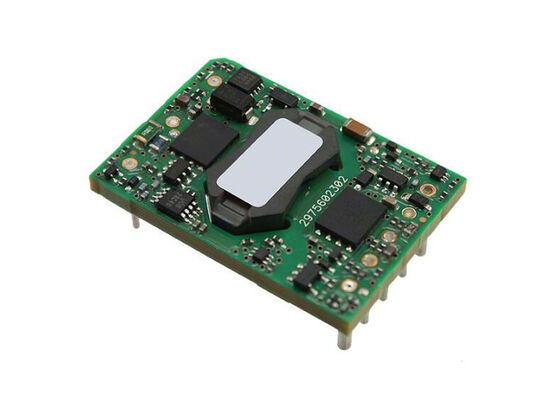

The V36SE05010 is a member of the V36SE Series — a 1/16th brick, 18–75V wide input, single output, isolated DC/DC converter. It delivers up to 50 watts of power in the industry-standard 1/16th brick form factor (1.30" × 0.90") and pinout.

Specifications Of V36SE05010
Product Category DC/DC Converters – Through Hole
Isolation Isolated
Number of Outputs 1 Output
Output Power 50 W
Output Voltage – Channel 1 5 V
Output Current – Channel 1 10 A
Isolation Voltage 2.25 kV
Package / Case 1/16 Brick
Length 33 mm (1.299 in)
Width 22.86 mm (0.9 in)
Height 9.4 mm (0.37 in)
Industry Industrial
Maximum Operating Temperature + 115 ℃
Minimum Operating Temperature − 40 ℃
Input Voltage 18 V to 75 V
Key Features Of V36SE05010
  • High efficiency: 91% @ 5V/10A, 48Vin; 90% @ 5V/8A, 24Vin
  • Compact size: 33.0 × 22.8 × 9.3 mm (1.30" × 0.90" × 0.37")
  • Industry-standard 1/16th brick size and pinout
  • Input UVLO (Under-Voltage Lockout)
  • OTP and output OCP, OVP (default is auto-recovery)
  • Output voltage trim: −20%, +10%
  • Monotonic startup into normal and pre-biased loads
  • 2250V isolation and basic insulation
  • No minimum load required
  • SMD and through-hole versions available
Applications Of V36SE05010
  • Optical Transport
  • Data Networking
  • Communications
  • Servers
