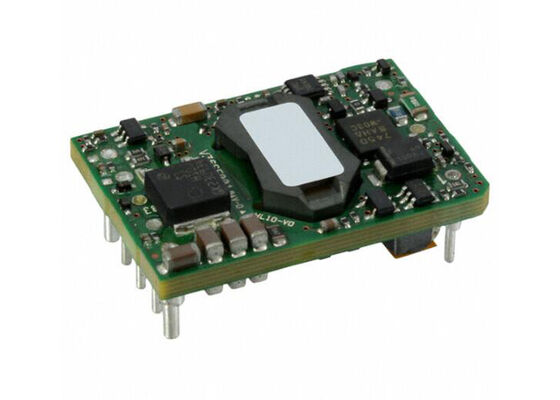

V36SE12004NRFA 50W 12V Output 1/16 Brick Isolated DC/DC Power Module Integrated Circuit Chip for Industrial Applications

V36SE12004NRFA 50W 12V Output 1/16 Brick Isolated DC/DC Power Module Integrated Circuit Chip for Industrial Applications
V36SE12004NRFA 50W 12V Output 1/16 Brick Isolated DC/DC Power Module Integrated Circuit Chip for Industrial Applications

Large Image :  V36SE12004NRFA 50W 12V Output 1/16 Brick Isolated DC/DC Power Module Integrated Circuit Chip for Industrial Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: V36SE12004NRFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

V36SE12004NRFA 50W 12V Output 1/16 Brick Isolated DC/DC Power Module Integrated Circuit Chip for Industrial Applications

Description
Part Number: V36SE12004NRFA Power (Watts): 50 W
Voltage - Isolation: 2.25 KV Current - Output (Max): 4.2A
Package / Case: 8-DIP Module, 1/16 Brick Operating Temperature: -40°C ~ 122°C
Highlight:

50W DC/DC Power Module

,

12V Output Isolated DC/DC Converter

,

1/16 Brick Integrated Circuit Chip

V36SE12004NRFA Integrated Circuit Chip 3.9A 12V 1/16th Brick Isolated DC/DC Power Modules


Product Description Of V36SE12004

The V36SE12004 is a 1/16th brick, 18–75V wide input, single output, isolated DC/DC converter. It provides up to 50 watts of power in the industry-standard 1/16th brick form factor (1.30" × 0.90") and pinout. For the 12V output module, it delivers 50W (4.2A) output with 36 to 75V input, and delivers 40W (3.5A) output while the input is 18 to 36V to the same module. Typical efficiency of the 12V/4.2A module is greater than 88%.

Specifications Of V36SE12004
Product CategoryDC/DC Converters – Through Hole
IsolationIsolated
Number of Outputs1 Output
Output Power50 W
Output Voltage – Channel 112 V
Output Current – Channel 14.2 A
Isolation Voltage2.25 kV
Package / Case1/16 Brick
Length33 mm (1.299 in)
Width22.86 mm (0.9 in)
Height8.64 mm (0.34 in)
IndustryIndustrial
Maximum Operating Temperature+ 120 ℃
Minimum Operating Temperature− 40 ℃
Input Voltage18 V to 75 V
Mounting StyleThrough Hole
Features Of V36SE12004
  • High efficiency: 88% @ 12V/4.2A, 48Vin; 86% @ 12V/3.5A, 24Vin
  • Size: 33.0 × 22.8 × 8.7 mm (1.30" × 0.90" × 0.34")
  • Industry-standard 1/16th brick size & pinout
  • Input UVLO
  • OTP and output OCP, OVP (default is auto-recovery)
  • Output voltage trim: −20%, +10%
  • Monotonic startup into normal and pre-biased loads
  • 2250V isolation and basic insulation
  • No minimum load required
  • SMD and through-hole versions
Applications Of V36SE12004
  • Optical Transport
  • Data Networking
  • Communications
  • Servers
