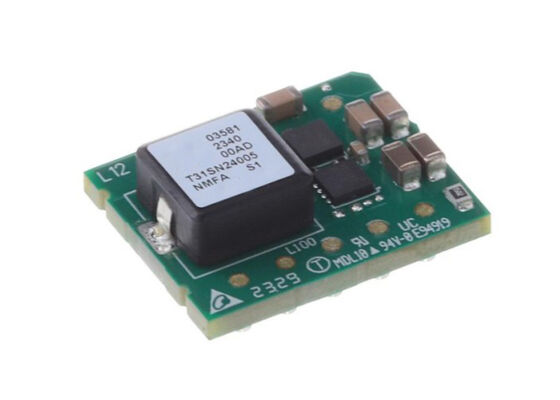

T31SN24005NMFA Integrated Circuit Chip 100W 1/32th Brick Non-Isolated DC/DC Power Module

T31SN24005NMFA Integrated Circuit Chip 100W 1/32th Brick Non-Isolated DC/DC Power Module
T31SN24005NMFA Integrated Circuit Chip 100W 1/32th Brick Non-Isolated DC/DC Power Module

Large Image :  T31SN24005NMFA Integrated Circuit Chip 100W 1/32th Brick Non-Isolated DC/DC Power Module

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: T31SN24005NMFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

T31SN24005NMFA Integrated Circuit Chip 100W 1/32th Brick Non-Isolated DC/DC Power Module

Description
Part Number: T31SN24005NMFA Input Voltage:: 9~53Vdc
Single Output:: 5~30Vdc Output Power:: 100W
Output Current-Channel 1:: 4.5 A Unit Weight:: 8 G
Highlight:

100W DC/DC Power Module

,

1/32 Brick Integrated Circuit Chip

,

Non-Isolated DC/DC Power Module

T31SN24005NMFA Integrated Circuit Chip 100W 1/32th Brick Non-Isolated DC/DC Power Module

Product Overview Of T31SN24005

The T31SN24005 is a 1/32 brick, non-isolated DC/DC power module featuring a wide 9–53V input range and a single output. This product family delivers up to 100 watts of power or 4.5A of output current.

Through creative design technology and optimized component placement, these converters achieve outstanding electrical and thermal performance, along with extremely high reliability under highly stressful operating conditions. The 27Vin / 24Vout / 4.5A module reaches a peak efficiency of up to 98.0%.

Specifications Of T31SN24005
Isolation Non-Isolated
Number of Outputs 1 Output
Output Power 100 W
Output Voltage – Channel 1 5 V to 30 V
Output Current – Channel 1 4.5 A
Package / Case 1/32 Brick
Length 19.1 mm (0.752 in)
Width 23.4 mm (0.921 in)
Height 9.6 mm (0.378 in)
Maximum Operating Temperature + 85 °C
Minimum Operating Temperature − 40 °C
Unit Weight 8 g
Key Features Of T31SN24005
  • High efficiency: 98.0% @ 27Vin / 24Vo, 4.5A
  • Industry standard 1/32nd brick form factor
  • Fixed frequency operation
  • Thermal limit and input UVLO
  • Output OCP hiccup mode
  • Output voltage trim range: 5V–30V
  • Output remote sense
  • Monotonic startup into normal
  • No minimum load requirement
  • Working altitude up to 5000 m
Product Tags
  • T31SN24005NMFA
  • T31SN24005NMF
  • T31SN24005NM
  • T31SN24005N
  • T31SN24005
