E36SC12009NRFH 108W 9A Output Current 1.5 kV Isolation DC/DC Power Module Isolated DC/DC Converter Eighth Brick

Large Image : E36SC12009NRFH 108W 9A Output Current 1.5 kV Isolation DC/DC Power Module Isolated DC/DC Converter Eighth Brick

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	E36SC12009NRFH

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 Pieces per Day

Contact Now

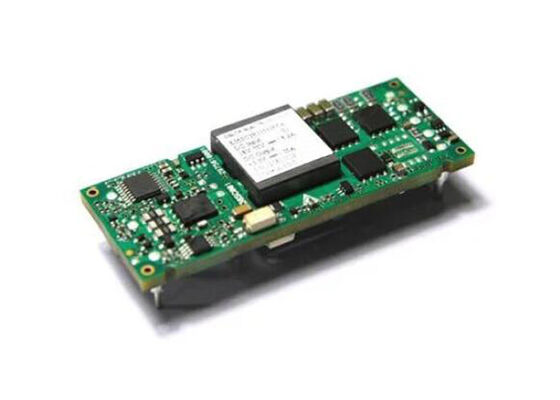

E36SC12009NRFH 108W 9A Output Current 1.5 kV Isolation DC/DC Power Module Isolated DC/DC Converter Eighth Brick

Description

Part Number:	E36SC12009NRFH	Power (Watts):	108 W
Voltage - Isolation:	1.5 KV	Current - Output (Max):	9A
Package / Case:	Eighth Brick	Operating Temperature:	-40°C ~ 85°C
Highlight:	108W DC/DC Power Module , 9A Output Current Isolated DC/DC Converter , 1.5 kV Isolation DC/DC Power Module

E36SC12009NRFH Integrated Circuit Chip 108W Eighth Brick Isolated DC/DC Power Module

Product Description Of E36SC12009

The E36SC12009NRFH is an E36SC120 series Eighth Brick, 18V–75Vin input, single output, isolated DC/DC converter. It provides up to 108 watts of power or 9A of output current. With creative design technology and optimization of component placement, these converters possess outstanding electrical and thermal performance, as well as extremely high reliability under highly stressful operating conditions. Typical efficiency of the 12V/9A module is greater than 92%.

Specifications Of E36SC12009

Product Category	DC/DC Converters – Through Hole
Isolation	Isolated
Number of Outputs	1 Output
Output Power	108 W
Output Voltage – Channel 1	12 V
Output Current – Channel 1	9 A
Isolation Voltage	1.5 kV
Package / Case	1/8 Brick
Length	58.4 mm (2.299 in)
Width	22.8 mm (0.898 in)
Height	12.7 mm (0.5 in)
Industry	Industrial
Maximum Operating Temperature	+ 85°C
Minimum Operating Temperature	− 40°C
Input Voltage	18 V to 75 V
Mounting Style	Through Hole

Key Features Of E36SC12009

High efficiency: 92% @ 12V/9A
Industry standard footprint and pinout
Fixed frequency operation
Input UVLO (Under Voltage Lock Out)
OTP (Over Temperature Protection) and OVP (Over Voltage Protection)
Output OCP (Over Current Protection) hiccup mode
Output voltage trim down: −10%
Output voltage trim up: +10% at Vin > 20V
Monotonic startup into normal and pre-biased loads
1500V isolation and basic insulation
No minimum load required
No negative current during power or enable on/off
