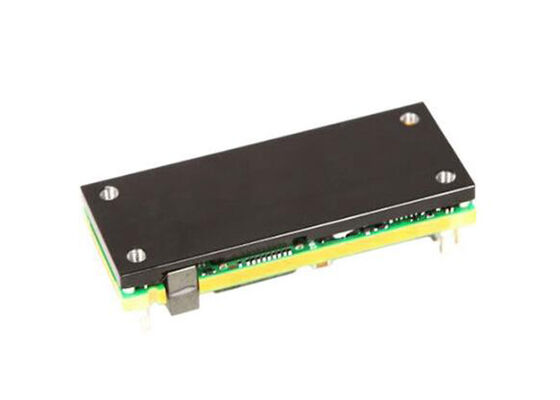

E48SC12025NRFH 300W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 1.5 kV Isolation

E48SC12025NRFH 300W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 1.5 kV Isolation
E48SC12025NRFH 300W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 1.5 kV Isolation

Large Image :  E48SC12025NRFH 300W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 1.5 kV Isolation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: E48SC12025NRFH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

E48SC12025NRFH 300W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 1.5 kV Isolation

Description
Part Number: E48SC12025NRFH Power (Watts): 300 W
Voltage - Isolation: 1.5 KV Number Of Outputs: 1
Package / Case: 13-DIP Module, 1/8 Brick Operating Temperature: -40°C ~ 85°C
Highlight:

300W DC/DC Power Module

,

Eighth Brick Integrated Circuit Chip

,

1.5 kV Isolation DC/DC Power Module

E48SC12025NRFH Integrated Circuit Chip 300W Eighth Brick DC/DC Power Module



Product Overview Of E48SC12025

The E48SC12025NRFH is an eighth-brick, fully digital controlled DC/DC converter featuring a 36–75V input range and a single 12V output. It delivers up to 300 watts of power in an industry-standard, DOSA-compliant footprint and pin-out, making it a reliable choice for demanding power conversion applications.

Specifications Of E48SC12025
Product Category DC/DC Converters – Through Hole
RoHS Compliant
Isolation Isolated
Number of Outputs 1 Output
Output Power 300 W
Output Voltage – Channel 1 12 V
Output Current – Channel 1 25 A
Isolation Voltage 1.5 kV
Package / Case 1/8 Brick
Maximum Operating Temperature +85°C
Minimum Operating Temperature −40°C
Input Voltage 36 V to 75 V
Mounting Style Through Hole
Key Features Of E48SC12025
  • Input voltage range: 36V–75V
  • Output voltage range (trim and PMBus): 8V–13.2V
  • High efficiency: 95.0% @ 48Vin / 25A
  • Industry-standard DOSA-compliant pin-out
  • Fully protected: Input UVLO, Output OCP and OVP, OTP
  • 1500V isolation
  • No minimum load required
  • Fixed frequency operation
  • Positive or Negative On/Off logic
  • Open Frame / With heat-spreader option
  • Digital PMBus interface option
Applications Of E48SC12025
  • Datacom / Networking
  • Wireless Networks
  • Optical Network Equipment
  • Server and Data Storage
  • Industrial / Testing Equipment
