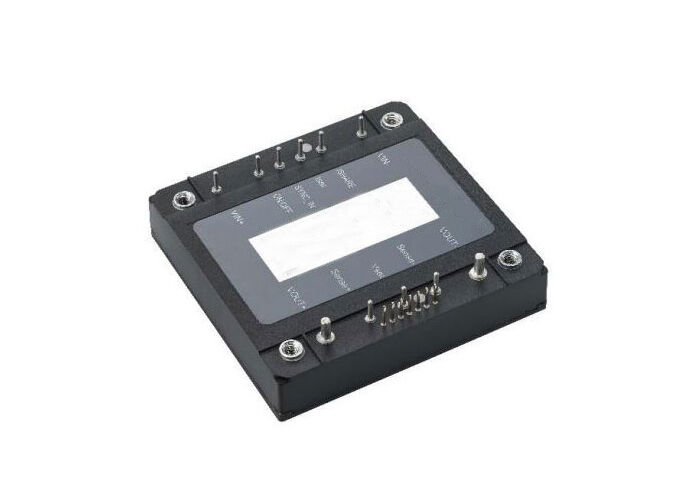

H60SB0A050NRDC Integrated Circuit Chip 50A Half Brick Non-Isolated DC/DC Power Module

Large Image : H60SB0A050NRDC Integrated Circuit Chip 50A Half Brick Non-Isolated DC/DC Power Module

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	H60SB0A050NRDC

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 Pieces per Day

Contact Now

H60SB0A050NRDC Integrated Circuit Chip 50A Half Brick Non-Isolated DC/DC Power Module

Description

Part Number:	H60SB0A050NRDC	Number Of Outputs::	1 Output
Output Voltage-Channel 1::	60 V	Output Current-Channel 1::	50 A
Maximum Operating Temperature::	+ 85 C	Minimum Operating Temperature::	- 40 C
Highlight:	50A DC/DC Power Module , Half Brick Integrated Circuit Chip , Non-Isolated DC/DC Power Module

H60SB0A050NRDC Integrated Circuit Chip 50A Half Brick Non-Isolated DC/DC Power Module

Product Description Of H60SB0A050

The H60SB0A050 is a half-brick, non-isolated, single-output regulated DC/DC converter with a wide 9–60V input range. It delivers up to 50A output current and achieves a peak efficiency of 98% in an industry-standard footprint.

Through creative design technology and optimized component placement, this converter offers outstanding electrical and thermal performance, along with extremely high reliability under highly stressful operating conditions. The H60SB0A050 can be connected in parallel for higher power without an external ORing FET.

Specifications Of H60SB0A050

Isolation	Non-Isolated
Number of Outputs	1 Output
Output Voltage – Channel 1	60 V
Output Current – Channel 1	50 A
Length	63.2 mm (2.488 in)
Width	60.6 mm (2.386 in)
Height	13 mm (0.512 in)
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	−40 °C
Unit Weight	155 g

Key Features Of H60SB0A050

Peak efficiency up to 98%
PMBus communication
Fully protected: input UVP and OVP; output OVP, OCP, and OTP
Output ORing FET integrated inside the module
Adjustable current limit
Remote ON/OFF, negative logic
Pre-bias startup
No minimum load required
Parallel operation with active current sharing
Non-isolated; Vin− pin and Vout− pin shorted together inside the power module
