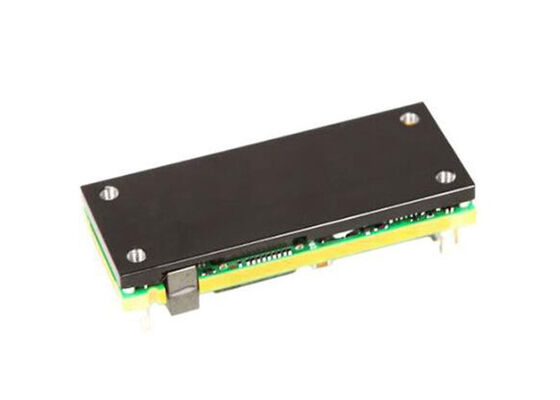

E48SC12030NRFH 360W 1/8th Brick 30A DC/DC Power Module Integrated Circuit Chip for Datacom Networking

E48SC12030NRFH 360W 1/8th Brick 30A DC/DC Power Module Integrated Circuit Chip for Datacom Networking
E48SC12030NRFH 360W 1/8th Brick 30A DC/DC Power Module Integrated Circuit Chip for Datacom Networking

Large Image :  E48SC12030NRFH 360W 1/8th Brick 30A DC/DC Power Module Integrated Circuit Chip for Datacom Networking

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: E48SC12030NRFH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

E48SC12030NRFH 360W 1/8th Brick 30A DC/DC Power Module Integrated Circuit Chip for Datacom Networking

Description
Part Number: E48SC12030NRFH Power (Watts): 360 W
Voltage - Isolation: 1.5 KV Current - Output (Max): 30A
Package / Case: 13-DIP Module, 1/8 Brick Operating Temperature: -40°C ~ 85°C
Highlight:

360W DC/DC Power Module

,

1/8th Brick Integrated Circuit Chip

,

30A DC/DC Power Module

E48SC12030NRFH Integrated Circuit Chip 360W 1/8th Brick DC/DC Power Module


Product Description Of E48SC12030

The E48SC12030NRFH is an eighth-brick, fully digital controlled DC/DC converter with a 36–75V input and a single 12V output. It delivers up to 360 watts of power in an industry-standard, DOSA-compliant footprint and pin-out. The E48SC12030 achieves over 94.5% efficiency at 48V input, 12V output, and 30A load.

Specifications Of E48SC12030
Product CategoryDC/DC Converters – Through Hole
IsolationIsolated
Number of Outputs1 Output
Output Power360 W
Output Voltage – Channel 112 V
Output Current – Channel 130 A
Isolation Voltage1.5 kV
Package / Case1/8 Brick
Length58.4 mm (2.299 in)
Width22.8 mm (0.898 in)
Height12.7 mm (0.5 in)
Maximum Operating Temperature+ 85 °C
Minimum Operating Temperature− 40 °C
Input Voltage36 V to 75 V
Mounting StyleThrough Hole
Key Features Of E48SC12030
  • Efficiency: 94.5% @ 48Vin / 30A
  • Output voltage range (trim and PMBus): 8V–13.2V
  • Industry-standard DOSA-compliant pin-out
  • Fully protected: Input UVLO, Output OCP and OVP, OTP
  • 1500V isolation
  • No minimum load required
  • Fixed frequency operation
  • Positive or Negative On/Off logic
  • Heat-spreader option available
  • Digital PMBus interface option
Applications Of E48SC12030
  • Datacom / Networking
  • Wireless Networks
  • Optical Network Equipment
  • Server and Data Storage
  • Industrial / Testing Equipment
