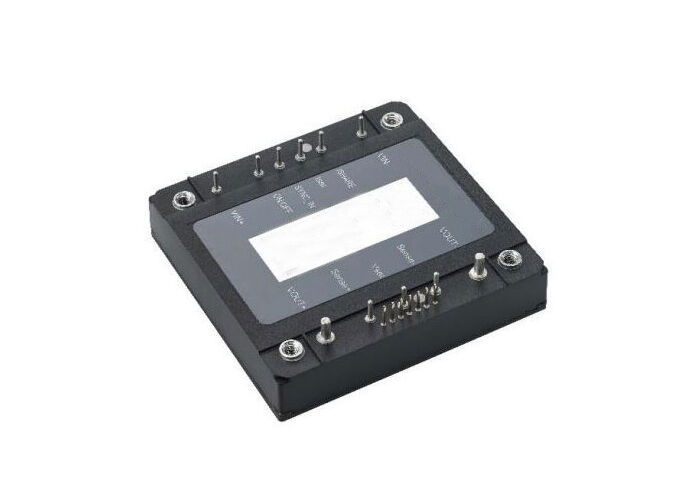

H60SB0A050NRDE Integrated Circuit Chip 50A 1/2 Brick DC/DC Regulated Power Module

The H60SB0A050 is a half-brick, non-isolated DC/DC regulated power supply module. It is a wide-input, high-current, adjustable POL (Point-of-Load) converter with standard half-brick dimensions of 63.2 × 60.6 × 13 mm. It features a single output channel with a maximum output current of 50 A, a peak power of up to 3,000 W, and a peak conversion efficiency of up to 98%.

The module supports the PMBus digital communication interface, enabling power telemetry, remote adjustment, fault monitoring, and configuration management. It natively supports current sharing and capacity expansion through parallel connection of multiple units, eliminating the need for additional external ORing anti-backflow MOSFETs and simplifying the design of high-power multi-module parallel systems. It also supports pre-biased start-up, making it suitable for power-up scenarios involving loads with residual voltage.

• Peak efficiency up to 98%
• PMBus communication interface
• Fully protected: Input UVP and OVP; Output OVP, OCP, and OTP
• Integrated output ORing FET inside the module
• Adjustable current limit
• Remote ON/OFF with negative logic
• Pre-bias startup capability
• No minimum load required
• Parallel operation with active current sharing
• Non-isolated design: Vin− pin and Vout− pin shorted together inside the power module

• AI Computing Servers and Data Network Equipment
• Industrial Automation Equipment
• Energy Storage and Battery Charging/Discharging Systems
• Communications and Telecommunications Infrastructure
• Power Supply for Specialised Equipment and Mobile Platforms
