E48SC32009NRAH 300W 1/8 Brick DC/DC Power Module Integrated Circuit Chip 36~72V Input Isolated DC/DC Converter

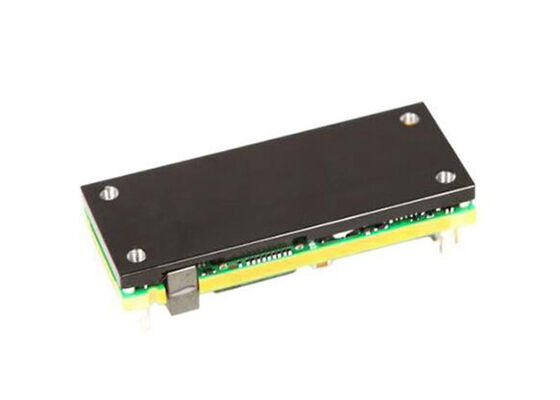

Large Image : E48SC32009NRAH 300W 1/8 Brick DC/DC Power Module Integrated Circuit Chip 36~72V Input Isolated DC/DC Converter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	E48SC32009NRAH

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 Pieces per Day

Contact Now

E48SC32009NRAH 300W 1/8 Brick DC/DC Power Module Integrated Circuit Chip 36~72V Input Isolated DC/DC Converter

Description

Part Number:	E48SC32009NRAH	Power (Watts):	300 W
Voltage - Isolation:	2.25 KV	Current - Output (Max):	9.4A
Package / Case:	Eighth Brick	Operating Temperature:	-40°C ~ 85°C
Highlight:	300W DC/DC Power Module , 1/8 Brick Integrated Circuit Chip , 36~72V Input Isolated DC/DC Converter

E48SC32009NRAH Integrated Circuit Chip 300W 1/8 Brick DC/DC Regulated Power Module

Product Description Of E48SC32009

The E48SC32009NRAH is an eighth-brick, isolated DC/DC converter with a 36–72 V input and a single 32 V output. It delivers up to 300 W of power in an industry-standard footprint and pin-out, making it a direct drop-in solution for demanding power architectures.

The E48SC32009 achieves peak efficiency of up to 95% and supports a very wide output voltage trim range. The minimum trim-down output voltage is 16 V, or 50% of the nominal output voltage.

Specifications Of E48SC32009

Product Category	DC/DC Converters – Chassis Mount
Isolation	Isolated
Number of Outputs	1 Output
Output Power	300 W
Output Voltage – Channel 1	32 V
Output Current – Channel 1	9.4 A
Isolation Voltage	2.25 kV
Industry	Industrial
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	−40 °C
Input Voltage	36 V to 72 V
Mounting Style	Chassis

Key Features Of E48SC32009

Peak efficiency up to 95%
Input range: 36–72 Vdc
Output voltage trim range: 16 V to 35 V
Output overvoltage protection (OVP), overcurrent protection (OCP), and hiccup mode
Input undervoltage protection (UVP)
Over-temperature protection
Remote ON/OFF
Pre-bias startup
No minimum load required
2250 Vdc isolation

Applications Of E48SC32009

Optical transport
Data networking
Communications
Servers
