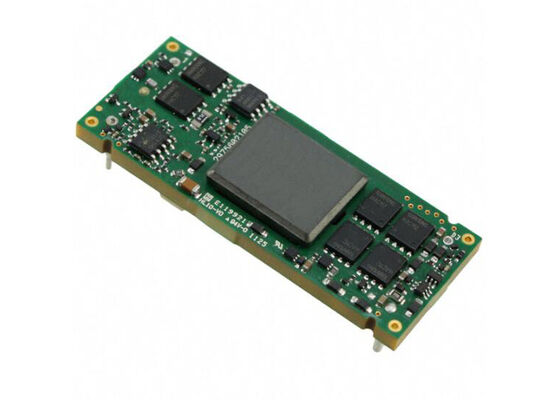

E48SP12020NRFA 240W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 94.5% Efficiency

E48SP12020NRFA 240W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 94.5% Efficiency
E48SP12020NRFA 240W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 94.5% Efficiency

Large Image :  E48SP12020NRFA 240W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 94.5% Efficiency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: E48SP12020NRFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

E48SP12020NRFA 240W Eighth Brick DC/DC Power Module Integrated Circuit Chip with 94.5% Efficiency

Description
Part Number: E48SP12020NRFA Power (Watts): 240 W
Voltage - Isolation: 2.25 KV Current - Output (Max): 20A
Package / Case: 5-DIP Module, 1/8 Brick Operating Temperature: -40°C ~ 122°C
Highlight:

240W DC/DC Power Module

,

Eighth Brick Integrated Circuit Chip

,

94.5% Efficiency DC/DC Power Module

E48SP12020NRFA Integrated Circuit Chip 240W Eighth Brick DC/DC Power Module


Product Description Of E48SP12020

The E48SP12020 is a 36–75V input, Eighth Brick, single-output, isolated DC/DC converter that provides up to 240 watts of power in an industry-standard footprint and pinout. It operates from an input voltage range of 36V to 75V and achieves 94.5% efficiency for the 12V output at full load.

Specifications Of E48SP12020
Product CategoryDC/DC Converters – Through Hole
IsolationIsolated
Number of Outputs1 Output
Output Power240 W
Output Voltage – Channel 112 V
Output Current – Channel 120 A
Isolation Voltage2.25 kV
Package / Case1/8 Brick
Length58.4 mm (2.299 in)
Width22.86 mm (0.9 in)
Height12.7 mm (0.5 in)
IndustryIndustrial
Maximum Operating Temperature+120°C
Minimum Operating Temperature−40°C
Input Voltage36 V to 75 V
Mounting StyleThrough Hole
Key Features Of E48SP12020
  • High efficiency: 94.5% @ 12V/20A
  • Industry-standard pinout
  • Fixed frequency operation
  • Input UVLO, Output OCP & OVP, OTP
  • Monotonic startup into normal and pre-biased loads
  • 2250V isolation and basic insulation
  • No minimum load required
  • No negative current during power on or power off
Applications Of E48SP12020
  • Telecom / Datacom
  • Wireless Networks
  • Optical Network Equipment
  • Server and Data Storage
  • Industrial / Test Equipment
