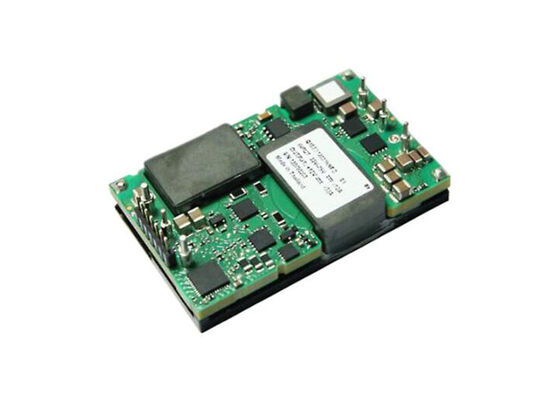

Q48SC12033NRDH 400W Quarter Brick DC/DC Power Module Integrated Circuit Chip 33A Output 36-75V Input

Q48SC12033NRDH 400W Quarter Brick DC/DC Power Module Integrated Circuit Chip 33A Output 36-75V Input
Q48SC12033NRDH 400W Quarter Brick DC/DC Power Module Integrated Circuit Chip 33A Output 36-75V Input

Large Image :  Q48SC12033NRDH 400W Quarter Brick DC/DC Power Module Integrated Circuit Chip 33A Output 36-75V Input

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: Q48SC12033NRDH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

Q48SC12033NRDH 400W Quarter Brick DC/DC Power Module Integrated Circuit Chip 33A Output 36-75V Input

Description
Part Number: Q48SC12033NRDH Power (Watts): 400W
Voltage - Isolation: 1.5 KV Current - Output (Max): 33A
Package / Case: Quarter Brick Operating Temperature: -40°C ~ 85°C (With Derating)
Highlight:

400W DC/DC Power Module

,

Quarter Brick Integrated Circuit Chip

,

33A DC/DC Power Module

Q48SC12033NRDH Integrated Circuit Chip 400W Quarter Brick DC/DC Power Module



Product Description Of Q48SC12033

The Q48SC12033 is a quarter-brick, fully digital controlled DC/DC converter featuring a 36–75V input range and a single 12V output. It delivers up to 400 watts of power within an industry-standard, DOSA-compliant footprint and pin-out. The Q48SC12033 achieves greater than 95.0% efficiency at 48V input, 12V output, and 33A load.

Specifications Of Q48SC12033
Product Category DC/DC Converters – Chassis Mount
Isolation Isolated
Number of Outputs 1 Output
Output Power 400 W
Output Voltage – Channel 1 12 V
Output Current – Channel 1 33 A
Isolation Voltage 1.5 kV
Package / Case 1/4 Brick
Industry Industrial
Maximum Operating Temperature + 85°C
Minimum Operating Temperature − 40°C
Input Voltage 36 V to 75 V
Mounting Style Chassis
Key Features Of Q48SC12033
  • Input voltage range: 36V–75V
  • Output voltage range (trim and PMBus): 8V–13.2V
  • Fully regulated from 36V to 75V input
  • High efficiency: 95.0% @ 48Vin / 33A
  • Industry-standard DOSA-compliant pin-out
  • Fully protected: Input UVLO, Output OCP and OVP, OTP
  • Droop current sharing
  • 1500V isolation
  • No minimum load required
  • Fixed frequency operation
Applications Of Q48SC12033
  • Datacom / Networking
  • Wireless networks
  • Optical network equipment
  • Server and data storage
  • Industrial / Test equipment
Other Electronic Components In Stock
Part Number Package
LTC4312CDE DFN-14
LTC4312CMS MSOP-16
LTC4312IDE DFN-14
LTC4312IMS MSOP-16
LTC4314CGN SSOP-20
LTC4314CUDC QFN-20
LTC4314IGN SSOP-20
LTC4314IUDC QFN-20
LTC4309CDE DFN-12
LTC4309CGN SSOP-16
LTC4309IDE DFN-12
LTC4309IGN SSOP-16
ADG3308BCPZ LFCSP-20
ADG3308BRUZ TSSOP-20
ADG3308BCBZ-1 WLCSP-20
LTC4308CDD DFN-8
LTC4308CMS8 MSOP-8
LTC4308IDD DFN-8
LTC4308IMS8 MSOP-8
ADG3123BRUZ TSSOP-20
LTC4303CDD DFN-8
LTC4303CMS8 MSOP-8
LTC4303IDD DFN-8
LTC4303IMS8 MSOP-8
LTC4304CDD DFN-10
LTC4304CMS MSOP-10
LTC4304IDD DFN-10
LTC4304IMS MSOP-10
LTC4301CMS8 MSOP-8
LTC4301CDD DFN-8
Tags
Q48SC12033NRDH Q48SC12033NRD Q48SC12033NR Q48SC12033N Q48SC12033
