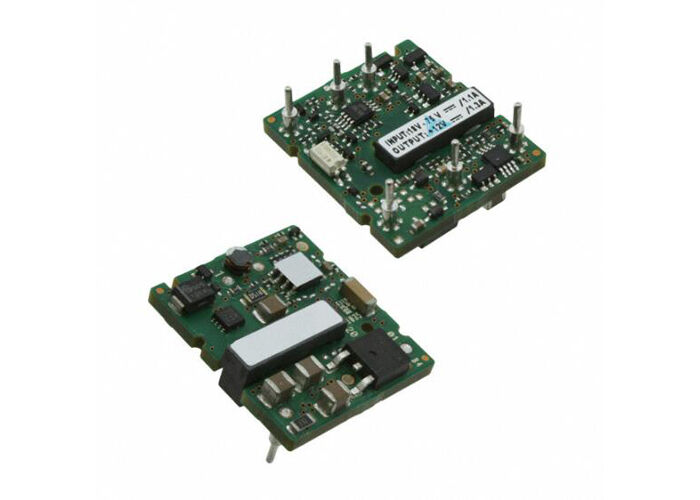

S36SE12001NRFB 17W 1x1 Brick Isolated DC/DC Converter Integrated Circuit Chip

S36SE12001NRFB 17W 1x1 Brick Isolated DC/DC Converter Integrated Circuit Chip
S36SE12001NRFB 17W 1x1 Brick Isolated DC/DC Converter Integrated Circuit Chip

Large Image :  S36SE12001NRFB 17W 1x1 Brick Isolated DC/DC Converter Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S36SE12001NRFB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

S36SE12001NRFB 17W 1x1 Brick Isolated DC/DC Converter Integrated Circuit Chip

Description
Part Number: S36SE12001NRFB Power (Watts): 17 W
Voltage - Isolation: 2.25 KV Number Of Outputs: 1
Mounting Type: Through Hole Operating Temperature: -40°C ~ 123°C
Highlight:

17W DC/DC Converter

,

1x1 Brick DC/DC Converter

,

Isolated Integrated Circuit Chip

S36SE12001NRFB Integrated Circuit Chip 17W 1x1 Brick Isolated DC/DC Converter


Product Description Of S36SE12001

The S36SE12001 is a 1x1 sized, 18–75 Vin, single output, isolated DC/DC converter. It is available in either a surface mount or through-hole package and provides up to 17 watts of power or 5 A of output current (3.3 V and below) in a standard 1x1 form factor (1.10" × 0.96" × 0.33").

Specifications Of S36SE12001
Product CategoryDC/DC Converters – Through Hole
IsolationIsolated
Number of Outputs1 Output
Output Power17 W
Output Voltage – Channel 112 V
Output Current – Channel 11.3 A
Isolation Voltage1.5 kV
IndustryMedical, Industrial
Maximum Operating Temperature+ 85 °C
Minimum Operating Temperature− 40 °C
Input Voltage18 V to 75 V
Mounting StyleThrough Hole
Key Features Of S36SE12001
  • High efficiency: 87% @ 12 V / 1.3 A
  • Industry standard 1x1 pinout
  • Size: 27.9 × 24.4 × 8.7 mm (1.10" × 0.96" × 0.34")
  • Fixed frequency operation
  • SMT and through-hole versions available
  • 4:1 input voltage range
  • Input UVLO (Under-Voltage Lockout)
  • Output OCP, OVP, and OTP protection
  • Monotonic startup into normal and pre-bias loads
  • Output voltage trim ±10%
  • 2250 V isolation and basic insulation
  • No minimum load required
Applications Of S36SE12001
  • Optical Transport
  • Data Networking
  • Communications, including Wireless and traditional Telecom
  • Servers
