S36SE3R305NRFB 17W 5A Through Hole DC/DC Power Module Integrated Circuit Chip Isolated Converter S36SE3R305NRFB

S36SE3R305NRFB 17W 5A Through Hole DC/DC Power Module Integrated Circuit Chip Isolated Converter S36SE3R305NRFB
S36SE3R305NRFB 17W 5A Through Hole DC/DC Power Module Integrated Circuit Chip Isolated Converter S36SE3R305NRFB

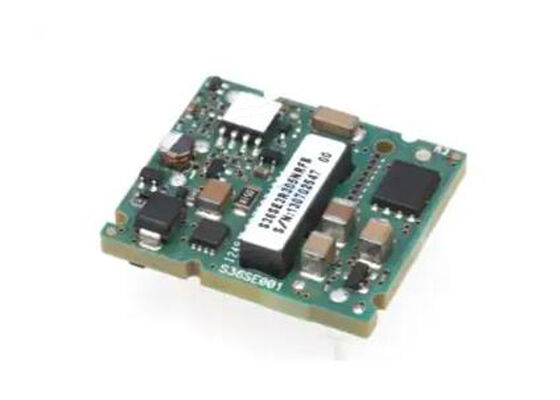

Large Image :  S36SE3R305NRFB 17W 5A Through Hole DC/DC Power Module Integrated Circuit Chip Isolated Converter S36SE3R305NRFB

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S36SE3R305NRFB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

S36SE3R305NRFB 17W 5A Through Hole DC/DC Power Module Integrated Circuit Chip Isolated Converter S36SE3R305NRFB

Description
Part Number: S36SE3R305NRFB Power (Watts): 17 W
Voltage - Isolation: 2.25 KV Current - Output (Max): 5A
Mounting Type: Through Hole Operating Temperature: -40°C ~ 123°C
Highlight:

17W DC/DC Power Module

,

5A Integrated Circuit Chip

,

Through Hole DC/DC Power Module

S36SE3R305NRFB Integrated Circuit Chip 17W 1x1 Brick Series DC/DC Power Module



Product Overview Of S36SE3R305

The S36SE3R305NRFB is a 1x1 sized, 18–75 Vin, single-output, isolated DC/DC converter delivering up to 17 W of power or 5 A of output current (3.3 V and below) in a standard 1x1 form factor (1.10" × 0.96" × 0.33"). It is available in either a surface-mount or through-hole package, and its pinout is compatible with the popular industry-standard 1x2 sized products.

Specifications Of S36SE3R305
Product Category DC/DC Converters – Through Hole
Isolation Isolated
Number of Outputs 1 Output
Output Power 17 W
Output Voltage – Channel 1 3.3 V
Output Current – Channel 1 5 A
Isolation Voltage 1.5 kV
Length 29.4 mm (1.157 in)
Width 25.6 mm (1.008 in)
Height 10.2 mm (0.402 in)
Industry Medical, Industrial
Maximum Operating Temperature + 85 ℃
Minimum Operating Temperature − 40 ℃
Input Voltage 18 V to 75 V
Mounting Style Through Hole
Key Features Of S36SE3R305
  • High efficiency: 86.5% @ 3.3 V / 5 A
  • Industry-standard 1x1 pinout
  • Compact size: 27.9 × 24.4 × 8.7 mm (1.10" × 0.96" × 0.34")
  • Fixed frequency operation
  • 4:1 ultra-wide input voltage range
  • Input UVLO (Under-Voltage Lockout)
  • Output OCP, OVP, and OTP protection
  • Monotonic startup into normal and pre-bias loads
  • Output voltage trim ±10%
  • 2250 V isolation and basic insulation
  • No minimum load required
  • SMT and through-hole versions available
Applications Of S36SE3R305
  • Optical Transport
  • Data Networking
  • Communications, including Wireless and traditional Telecom
  • Servers
