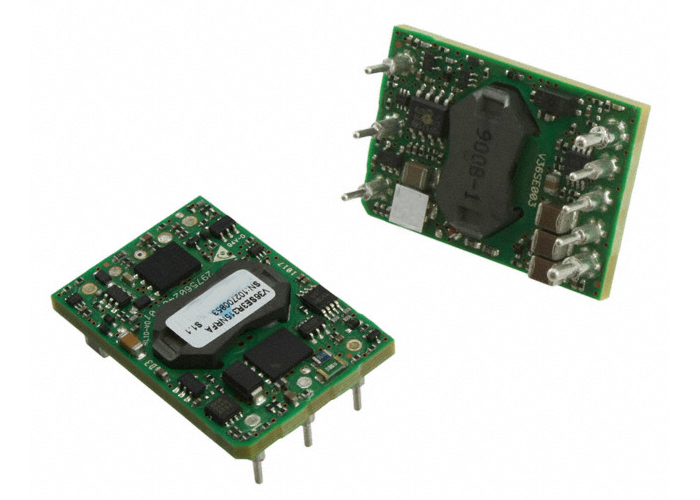

V36SE3R315NRFA Integrated Circuit Chip 1/16 Brick 3.3V 15A DC/DC Converter

V36SE3R315NRFA Integrated Circuit Chip 1/16 Brick 3.3V 15A DC/DC Converter
V36SE3R315NRFA Integrated Circuit Chip 1/16 Brick 3.3V 15A DC/DC Converter

Large Image :  V36SE3R315NRFA Integrated Circuit Chip 1/16 Brick 3.3V 15A DC/DC Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: V36SE3R315NRFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

V36SE3R315NRFA Integrated Circuit Chip 1/16 Brick 3.3V 15A DC/DC Converter

Description
Part Number: V36SE3R315NRFA Output Power:: 50 W
Output Voltage-Channel 1:: 3.3 V Output Current-Channel 1:: 15 A
Isolation Voltage:: 2.25 KV Unit Weight:: 12.100 G
Highlight:

3.3V 15A DC/DC Converter

,

50W Isolated DC Power Module

,

1/16 Brick DC/DC Converter

V36SE3R315NRFA Integrated Circuit Chip 1/16 Brick 3.3V 15A DC/DC Converter

Product Description Of V36SE3R315

The V36SE3R315 is an industry-standard 1/16-brick isolated DC power supply module featuring a wide input voltage range of 18–75 VDC, a fixed output of 3.3 V / 15 A, and a rated power of 50 W. It comes in a through-hole DIP package measuring 33 × 22.8 × 9.3 mm. With built-in isolation, it is specifically designed for on-board power conversion in telecommunications and data equipment.

Specifications Of V36SE3R315
IsolationIsolated
Number of Outputs1 Output
Output Power50 W
Output Voltage — Channel 13.3 V
Output Current — Channel 115 A
Isolation Voltage2.25 kV
Package / Case1/16 Brick
Length33 mm (1.299 in)
Width22.86 mm (0.9 in)
Height9.4 mm (0.37 in)
Maximum Operating Temperature+115 °C
Minimum Operating Temperature−40 °C
Input Voltage18 V to 75 V
Unit Weight12.100 g
Key Features Of V36SE3R315
  • High efficiency: up to 90.5% at full load with a 48 V input; high power density.
  • 2,250 Vrms isolation withstand voltage and basic insulation, compliant with telecommunications safety standards.
  • Comprehensive protection: input under-voltage lockout (UVLO), output over-current protection (OCP), over-voltage protection (OVP), and over-temperature protection (OTP), with automatic fault recovery.
  • Output voltage adjustment range: −20% to +10%, supporting remote voltage sampling compensation.
  • No minimum load required; supports monotonic start-up with pre-biased loads.
  • Wide operating temperature range: −40 °C to +118 °C; switching frequency 580 kHz.
  • Standard 1/16-brick pinout, compatible with replacement power modules of the same specification.
  • UL / EN / IEC 62368-1 safety certification obtained; RoHS compliant.
Applications Of V36SE3R315
  • Telecommunications / networking equipment: on-board power supply for routers, switches, and communications servers.
  • Data centre hardware, server motherboards, and storage devices: 3.3 V core power supply.
  • Industrial automation, industrial communications equipment, and embedded computing systems.
  • 48 V bus power supply systems: isolated step-down conversion to supply 3.3 V to high-power loads.
