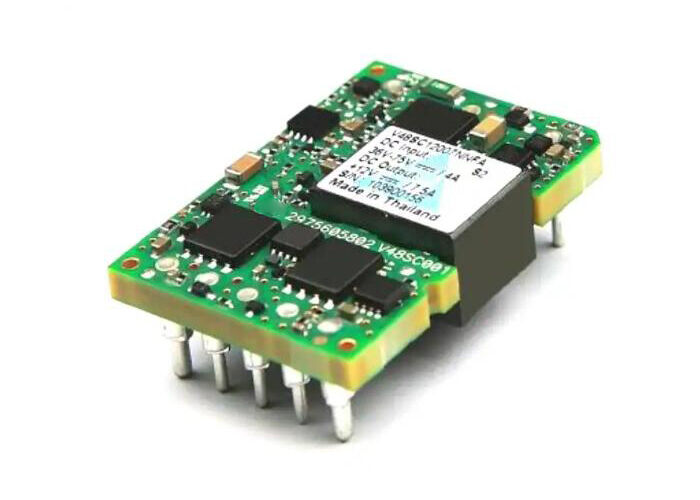

V36SE12005NRFA 60W 1/16th Brick Isolated DC/DC Power Module Integrated Circuit Chip

V36SE12005NRFA 60W 1/16th Brick Isolated DC/DC Power Module Integrated Circuit Chip
V36SE12005NRFA 60W 1/16th Brick Isolated DC/DC Power Module Integrated Circuit Chip

Large Image :  V36SE12005NRFA 60W 1/16th Brick Isolated DC/DC Power Module Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: V36SE12005NRFA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

V36SE12005NRFA 60W 1/16th Brick Isolated DC/DC Power Module Integrated Circuit Chip

Description
Part Number: V36SE12005NRFA Power (Watts): 60 W
Voltage - Isolation: 2.25 KV Current - Output (Max): 5A
Package / Case: Sixteenth Brick Operating Temperature: -30°C ~ 85°C
Highlight:

60W DC/DC Power Module

,

1/16th Brick Isolated DC/DC Converter

,

Isolated Integrated Circuit Chip

V36SE12005NRFA Integrated Circuit Chip 60W 1/16th Brick Isolated DC/DC Power Module



Product Overview Of V36SE12005

The V36SE12005NRFA is a 1/16th brick, 18–75V wide input, single output, isolated DC/DC converter. It delivers up to 60 watts of power in the industry-standard 1/16th brick form factor (1.30" × 0.90") and pinout. Through creative design technology and optimized component placement, this converter achieves outstanding electrical and thermal performance with extremely high reliability under highly stressful operating conditions.

Specifications Of V36SE12005
Product Category DC/DC Converters – Through Hole
Isolation Isolated
Number of Outputs 1 Output
Output Power 60 W
Output Voltage – Channel 1 12 V
Output Current – Channel 1 5 A
Isolation Voltage 2.25 kV
Package / Case 1/16 Brick
Length 33 mm (1.299 in)
Width 22.8 mm (0.898 in)
Height 8.7 mm (0.343 in)
Industry Industrial
Maximum Operating Temperature +85 ℃
Minimum Operating Temperature −30 ℃
Input Voltage 18 V to 75 V
Mounting Style Through Hole
Key Features Of V36SE12005
  • High efficiency: 88% @ 12V/5A, 48Vin
  • Compact size: 33.0 × 22.8 × 8.7 mm (1.30" × 0.90" × 0.34")
  • Industry-standard 1/16th brick size and pinout
  • Input UVLO (Under-Voltage Lockout)
  • OTP and output OCP, OVP protection (default is auto-recovery)
  • Output voltage trim: −20%, +10%
  • Monotonic startup into normal and pre-biased loads
  • 2250V isolation and basic insulation
  • No minimum load required
  • SMD and through-hole versions available
Applications Of V36SE12005
  • Optical Transport
  • Data Networking
  • Communications
  • Servers
