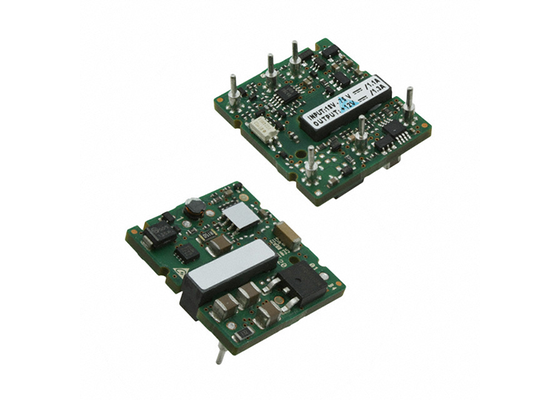

S36SE05003NRFB Isolated DC-DC Converter Integrated Circuit Chip with 5V 3A Output, 18V to 75V Input and 1.5kV Isolation

S36SE05003NRFB Isolated DC-DC Converter Integrated Circuit Chip with 5V 3A Output, 18V to 75V Input and 1.5kV Isolation
S36SE05003NRFB Isolated DC-DC Converter Integrated Circuit Chip with 5V 3A Output, 18V to 75V Input and 1.5kV Isolation

Large Image :  S36SE05003NRFB Isolated DC-DC Converter Integrated Circuit Chip with 5V 3A Output, 18V to 75V Input and 1.5kV Isolation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S36SE05003NRFB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

S36SE05003NRFB Isolated DC-DC Converter Integrated Circuit Chip with 5V 3A Output, 18V to 75V Input and 1.5kV Isolation

Description
Part Number: S36SE05003NRFB Output Power:: 17 W
Output Voltage-Channel 1:: 5 V Output Current-Channel 1:: 3 A
Isolation Voltage:: 1.5 KV Input Voltage:: 18 V To 75 V
Highlight:

5V 3A Output DC-DC Converter

,

18V to 75V Input Isolated DC-DC Power Module

,

1.5kV Isolation Integrated Circuit Chip

S36SE05003NRFB Integrated Circuit Chip 5V 3A Isolated DC-DC Converters

Product Description Of S36SE05003

The S36SE05003 is a 1" × 1" pin-out isolated DC-DC power supply module featuring a 4:1 ultra-wide input range of 18–75 VDC, a single output of 5 V / 3 A, a rated power of 15 W, and an isolation withstand voltage of 2250 VDC. It is an on-board brick-type isolated power supply specifically designed for converting high-voltage DC bus power to low-voltage isolated power supplies.

Specifications Of S36SE05003
IsolationIsolated
Number of Outputs1 Output
Output Power17 W
Output Voltage – Channel 15 V
Output Current – Channel 13 A
Isolation Voltage1.5 kV
Length29.4 mm (1.157 in)
Width25.6 mm (1.008 in)
Height10.2 mm (0.402 in)
IndustryMedical, Industrial
Maximum Operating Temperature+ 85 °C
Minimum Operating Temperature− 40 °C
Input Voltage18 V to 75 V
Unit Weight17.500 g
Key Features Of S36SE05003
  • Ultra-wide 4:1 input voltage range of 18–75 V, compatible with 48 V communication buses.
  • Isolation rating of 2250 VDC, with electrical isolation between primary and secondary sides, enhancing system immunity to interference and safety.
  • Full-load efficiency of 83.5%; standard 1-inch × 1-inch pinout for easy direct replacement.
  • Comprehensive protection: input under-voltage lock-out (UVLO), output over-current (OCP), over-voltage (OVP), and over-temperature (OTP) protection, including short-circuit protection.
  • Supports Remote On/Off control, enabling the module power supply to be switched on and off.
  • Operating temperature range: −40 °C to +85 °C; metal shielded enclosure; RoHS lead-free compliant; ITE safety certification.
Applications Of S36SE05003
  • Telecommunications equipment, wireless communications, optical transmission, and data network hardware.
  • Industrial automation, process control, test and measurement instruments.
  • On-board isolated power supplies for servers and data centres.
  • Rail transport, industrial DC systems, and space-constrained PCB power supply applications.
