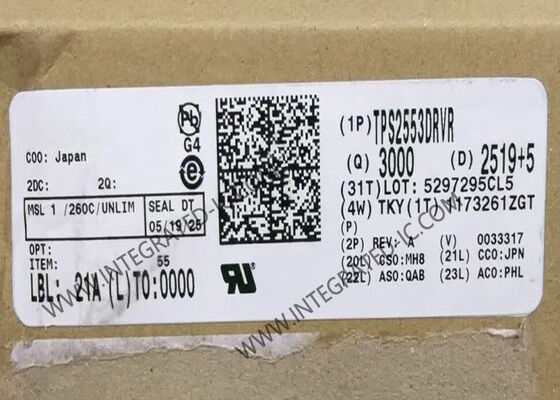

TPS2553DRVR 1.5A Output Current WSON-6 Package 2.5V to 6.5V Operating Voltage Power Distribution Switch USB Power Switch Integrated Circuit Chip

TPS2553DRVR 1.5A Output Current WSON-6 Package 2.5V to 6.5V Operating Voltage Power Distribution Switch USB Power Switch Integrated Circuit Chip
TPS2553DRVR 1.5A Output Current WSON-6 Package 2.5V to 6.5V Operating Voltage Power Distribution Switch USB Power Switch Integrated Circuit Chip

Large Image :  TPS2553DRVR 1.5A Output Current WSON-6 Package 2.5V to 6.5V Operating Voltage Power Distribution Switch USB Power Switch Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS2553DRVR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WSON-6
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

TPS2553DRVR 1.5A Output Current WSON-6 Package 2.5V to 6.5V Operating Voltage Power Distribution Switch USB Power Switch Integrated Circuit Chip

Description
Part Number: TPS2553DRVR Voltage - Load: 2.5V ~ 6.5V
Current - Output (Max): 1.5A Rds On (Typ): 100mOhm
Input Type: Non-Inverting Operating Temperature: -40°C ~ 150°C (TJ)
Highlight:

1.5A Output Current Power Distribution Switch

,

WSON-6 Package USB Power Switch

,

2.5V to 6.5V Operating Voltage Integrated Circuit Chip

TPS2553DRVR Integrated Circuit Chip 1.5A USB Power Switch WSON-6 Power-Distribution Switches



Product Description Of TPS2553

The TPS2553 power-distribution switch is designed for applications requiring precision current limiting, or where heavy capacitive loads and short circuits are encountered. It provides up to 1.5 A of continuous load current.

The TPS2553 offers a programmable current-limit threshold between 75 mA and 1.7 A (typical) via an external resistor. Current-limit accuracy as tight as ±6% can be achieved at higher current-limit settings. Power-switch rise and fall times are controlled to minimize current surges during turn-on and turn-off.

Specifications Of TPS2553
Product Category Power Switch ICs – Power Distribution
Type USB Switch
Number of Outputs 1 Output
Output Current 1.5 A
Current Limit 75 mA to 1.7 A
On Resistance – Max 115 mΩ
On Time – Max 3 ms
Off Time – Max 3 ms
Operating Supply Voltage 2.5 V to 6.5 V
Minimum Operating Temperature −40°C
Maximum Operating Temperature +85°C
Mounting Style SMD/SMT
Package / Case WSON-6
Key Features Of TPS2553
  • Up to 1.5 A maximum load current
  • ±6% current-limit accuracy at 1.7 A (typical)
  • Meets USB current-limiting requirements
  • Backwards compatible with TPS2550 and TPS2551
  • Adjustable current limit: 75 mA to 1700 mA (typical)
  • Fast overcurrent response – 2 µs (typical)
  • 85 mΩ high-side MOSFET (DBV package)
  • Reverse input-output voltage protection
  • Operating range: 2.5 V to 6.5 V
Applications Of TPS2553
  • USB ports and hubs
  • Digital TVs
  • Set-top boxes
  • VoIP phones
