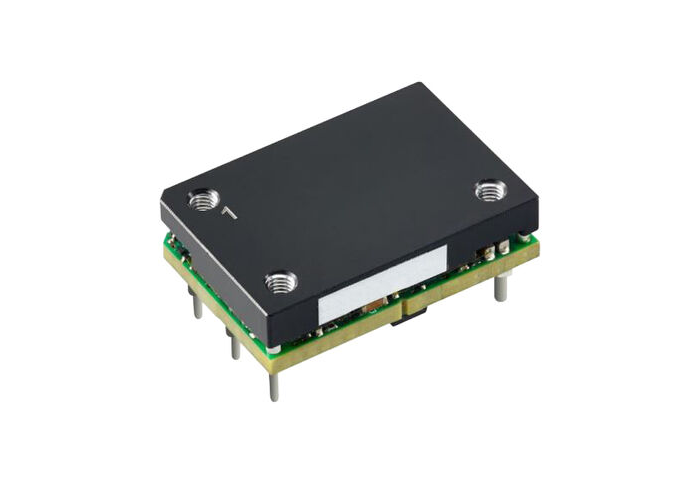

V48SD12010NNFH Integrated Circuit Chip 120W 1/16th Brick DCDC Power Module

V48SD12010NNFH Integrated Circuit Chip 120W 1/16th Brick DCDC Power Module
V48SD12010NNFH Integrated Circuit Chip 120W 1/16th Brick DCDC Power Module

Large Image :  V48SD12010NNFH Integrated Circuit Chip 120W 1/16th Brick DCDC Power Module

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: V48SD12010NNFH
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

V48SD12010NNFH Integrated Circuit Chip 120W 1/16th Brick DCDC Power Module

Description
Part Number: V48SD12010NNFH Number Of Outputs:: 1 Output
Output Power:: 120 W Output Voltage-Channel 1:: 12 V
Output Current-Channel 1:: 10 A Isolation Voltage:: 2.25 KV
Highlight:

120W DC-DC Power Module

,

1/16th Brick Integrated Circuit Chip

,

12V 10A DC-DC Power Module

V48SD12010NNFH Integrated Circuit Chip 120W 1/16th Brick DCDC Power Module

Product Description Of V48SD12010

The V48SD12010 is a DOSA-standard 1/16-brick isolated DC-DC power supply module featuring an input range of 36–60 V DC (suitable for a 48 V communication bus) and an output of 12 V / 10 A. It delivers a rated power of 120 W with a typical efficiency of 93% at full load and an isolation voltage of 2.25 kV.

The module supports output voltage fine-tuning and pre-biased start-up. It includes a comprehensive set of built-in protection functions: UVLO (under-voltage lock-out), OCP (over-current protection), OVP (over-voltage protection), and OTP (over-temperature protection). It incorporates negative logic enable control and is available in both standard and heat sink versions.

With high power density and a compact form factor, the V48SD12010 complies with IEC/EN/UL/CSA 62368-1 safety standards and boasts an excellent MTBF rating.

Specifications Of V48SD12010
Isolation Isolated
Number of Outputs 1 Output
Output Power 120 W
Output Voltage – Channel 1 12 V
Output Current – Channel 1 10 A
Isolation Voltage 2.25 kV
Package / Case 33 mm × 22.8 mm × 12.2 mm
Length 33 mm (1.299 in)
Width 22.8 mm (0.898 in)
Height 12.2 mm (0.48 in)
Industry Industrial
Maximum Operating Temperature +85 °C
Minimum Operating Temperature −40 °C
Dimensions 33 mm × 22.8 mm × 12.2 mm
Input Voltage 36 V to 60 V
Unit Weight 20 g
Key Features Of V48SD12010
  • High efficiency: 91.9% @ full load
  • Fixed frequency operation
  • Input UVLO, OTP and output OCP, OVP
  • Output voltage trim: max 20%
  • Pre-biased startup
  • 2250 V isolation and basic insulation
  • Applied to altitude up to 5000 m
Applications Of V48SD12010
  • Network communication equipment: switches, routers, optical transmission equipment, on-board power supplies for communication base stations
  • Data centres: servers, storage devices, on-board secondary step-down power supplies
  • Industrial equipment: industrial controllers, automated industrial control boards, industrial gateways
  • Telecommunications infrastructure: 48 V communication bus systems, on-board isolated power conversion
