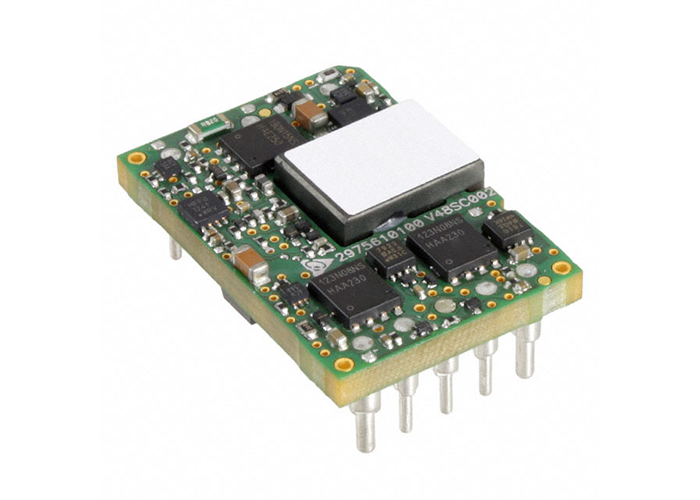

V48SC12007NRFA Integrated Circuit Chip 1/16 Brick 12V 7A DC/DC Converter

The V48SC12007 is an isolated DC-to-DC converter featuring a 1/16-brick standard package. It offers a wide input voltage range of 36–75 V DC (nominal 48 V bus), a fixed single 12 V output, a rated output of 7.5 A (commonly referred to as the 7 A version), and a maximum output power of 90 W. With module dimensions of 33 × 22.8 × 9.5 mm, it utilises the DOSA standard pinout and is available in both through-hole and surface-mount packaging options, providing an isolated 48V-to-12V power conversion solution for communications and data equipment.

• Typical conversion efficiency ≥ 92%, high power density, fixed-frequency switching operation.
• Isolation withstand voltage 1500 V, basic insulation, compliant with UL60950-1 safety certification.
• Comprehensive protection functions: input under-voltage lock-out (UVLO), output over-current (OCP), over-voltage (OVP) and over-temperature (OTP) protection.
• Output voltage is finely adjustable (−20% to +10%); no minimum load required, supporting monotonic start-up with pre-biased loads.
• Standard 1/16-brick industry pinout, compatible for replacement, with support for remote enable switching.
• High-reliability design with excellent thermal performance, enabling long-term operation in demanding telecommunications environments.

• Telecommunications equipment, network switches, routers.
• Servers, storage hardware, 48V bus power supply systems in data centres.
• Industrial network equipment, embedded computing boards.
• 48V-powered industrial control and communications embedded power subsystems.

• V48SC12007NRFA
• V48SC12007NRF
• V48SC12007NR
• V48SC12007N
• V48SC12007
