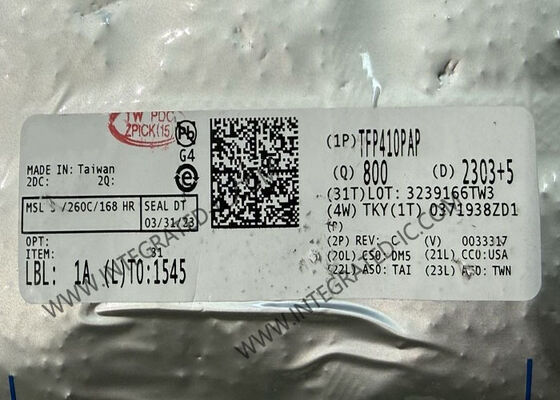

TFP410PAP 165MHz PanelBus Digital Transmitter DVI Transmitter with 3V to 3.6V Supply for HD Display Interfaces

TFP410PAP 165MHz PanelBus Digital Transmitter DVI Transmitter with 3V to 3.6V Supply for HD Display Interfaces
TFP410PAP 165MHz PanelBus Digital Transmitter DVI Transmitter with 3V to 3.6V Supply for HD Display Interfaces

Large Image :  TFP410PAP 165MHz PanelBus Digital Transmitter DVI Transmitter with 3V to 3.6V Supply for HD Display Interfaces

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TFP410PAP
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTQFP-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

TFP410PAP 165MHz PanelBus Digital Transmitter DVI Transmitter with 3V to 3.6V Supply for HD Display Interfaces

Description
Part Number: TFP410PAP Series: PanelBus™
Number Of Drivers/Receivers: 3/0 Operating Supply Current: 250 MA
Voltage - Supply: 3V ~ 3.6V Operating Temperature: 0°C ~ 70°C
Highlight:

165MHz Digital Transmitter

,

PanelBus DVI Transmitter

,

3V to 3.6V Supply Serializer

TFP410PAP Integrated Circuit Chip PanelBus™ Digital Transmitter 165MHz TMDS DVI Transmitter/Serializer



Product Overview Of TFP410

The TFP410 is a PanelBus™ flat-panel display product and part of a comprehensive family of end-to-end DVI 1.0-compliant solutions, targeted at the PC and consumer electronics industry.

The TFP410 provides a universal interface that allows a glueless connection to most commonly available graphics controllers. Advantages of this universal interface include selectable bus widths, adjustable signal levels, and differential and single-ended clocking. The adjustable 1.1V to 1.8V digital interface provides a low-EMI, high-speed bus that connects seamlessly with 12-bit or 24-bit interfaces.

Specifications Of TFP410
Product Category Display Interface IC
Mounting Style SMD/SMT
Package / Case HTQFP-64
Type Display Interface
Maximum Operating Frequency 165 MHz
Supply Voltage – Max 3.6 V
Supply Voltage – Min 3 V
Operating Supply Current 250 mA
Minimum Operating Temperature 0℃
Maximum Operating Temperature + 70℃
Interface Type DVI
Key Features Of TFP410
  • Digital visual interface (DVI) compliant
  • Supports pixel rates up to 165MHz (including 1080p and WUXGA at 60Hz)
  • Universal graphics controller interface:
    • 12-bit, dual-edge and 24-bit, single-edge input modes
    • Adjustable 1.1V to 1.8V and standard 3.3V CMOS input signal levels
    • Fully differential and single-ended input clocking modes
  • Enhanced PLL noise immunity:
    • On-chip regulators and bypass capacitors for reducing system costs
  • Enhanced jitter performance:
    • No HSYNC jitter anomaly
    • Negligible data-dependent jitter
  • Programmable using I2C serial interface
  • Monitor detection through hot-plug and receiver detection
  • Single 3.3V supply operation
  • 0.18µm EPIC-5™ CMOS process technology
  • Pin compatible with SiI164 DVI transmitter
Applications Of TFP410
  • DVD
  • Blu-ray™
  • HD Projectors
  • DVI/HDMI Transmitter
