OPA2197QDGKRQ1 Integrated Circuit Chip Dual Automotive 36V Precision Operational Amplifier

OPA2197QDGKRQ1 Integrated Circuit Chip Dual Automotive 36V Precision Operational Amplifier
OPA2197QDGKRQ1 Integrated Circuit Chip Dual Automotive 36V Precision Operational Amplifier

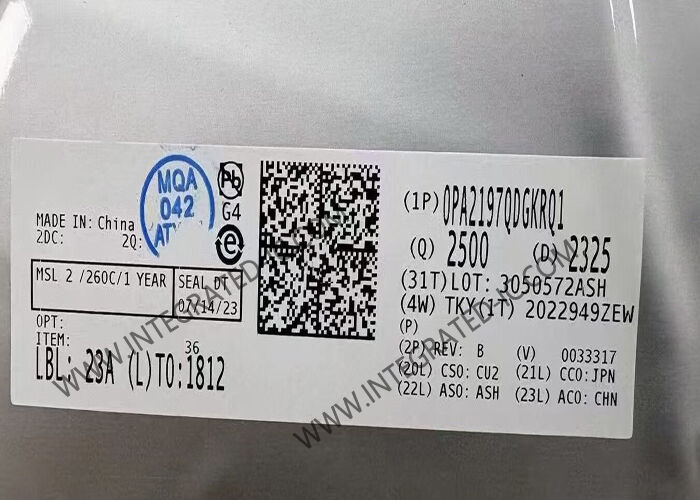

Large Image :  OPA2197QDGKRQ1 Integrated Circuit Chip Dual Automotive 36V Precision Operational Amplifier

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: OPA2197QDGKRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSSOP-8
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

OPA2197QDGKRQ1 Integrated Circuit Chip Dual Automotive 36V Precision Operational Amplifier

Description
Part Number: OPA2197QDGKRQ1 Number Of Circuits: 2
Output Type: Rail-to-Rail Slew Rate: 20V/µs
Gain Bandwidth Product: 10 MHz Current - Input Bias: 5 PA
Highlight:

Dual Channel Operational Amplifier

,

Automotive Grade Op Amp

,

36V Precision Op Amp

OPA2197QDGKRQ1 Integrated Circuit Chip Dual Automotive 36V Precision Operational Amplifier
Product Overview Of OPA2197

The OPA2197QDGKRQ1 is a dual-channel, automotive-qualified 36V precision operational amplifier from the OPAx197 family of e-trim™ op-amps. This device uses a proprietary package-level trim method for offset and offset temperature drift, applied during the final manufacturing steps after plastic molding. This technique minimizes the influence of inherent input transistor mismatch as well as errors induced during package molding, delivering high precision and stability in demanding automotive and industrial environments.

Specifications Of OPA2197
Number of Channels2 Channel
GBP – Gain Bandwidth Product10 MHz
SR – Slew Rate20 V/µs
Vos – Input Offset Voltage250 µV
Ib – Input Bias Current20 pA
Supply Voltage – Max36 V
Supply Voltage – Min4.5 V
Operating Supply Current1 mA
Output Current per Channel65 mA
CMRR – Common Mode Rejection Ratio140 dB
en – Input Voltage Noise Density5.5 nV/√Hz
Package / CaseVSSOP-8
Minimum Operating Temperature−40 °C
Maximum Operating Temperature+125 °C
In – Input Noise Current Density1.5 fA
Ios – Input Offset Current20 pA
Maximum Dual Supply Voltage18 V
Minimum Dual Supply Voltage2.25 V
THD plus Noise0.00008 %
Unit Weight29.300 mg
Key Features Of OPA2197
  • AEC-Q100 qualified for automotive applications
    • Temperature grade 1: −40 °C to +125 °C, TA
  • Low offset voltage: ±250 µV (maximum)
  • Low offset voltage drift: ±0.2 µV/°C
  • Low noise: 5.5 nV/√Hz at 1 kHz
  • High common-mode rejection: 140 dB
  • Low bias current: ±5 pA
  • Rail-to-rail input and output
  • Wide bandwidth: 10 MHz GBW
  • High slew rate: 20 V/µs
  • Low quiescent current: 1 mA per amplifier
  • Wide supply range: ±2.25 V to ±18 V, 4.5 V to 36 V
  • EMI/RFI filtered inputs
  • Differential input-voltage range to supply rail
  • High capacitive load drive capability: 1 nF
  • Industry-standard packages:
    • Single and dual channel in very-small, 8-pin VSSOP
    • Quad channel in 14-pin TSSOP
    • Quad channel in 14-pin SOIC
Applications Of OPA2197
  • Inverter and motor control
  • DC/DC converter
  • On-board charger (OBC) and wireless charger
  • Battery management system (BMS)
