INA597IDR High-Precision 2MHz Wide Bandwidth Low Power Difference Amplifier Integrated Circuit Chip

INA597IDR High-Precision 2MHz Wide Bandwidth Low Power Difference Amplifier Integrated Circuit Chip
INA597IDR High-Precision 2MHz Wide Bandwidth Low Power Difference Amplifier Integrated Circuit Chip

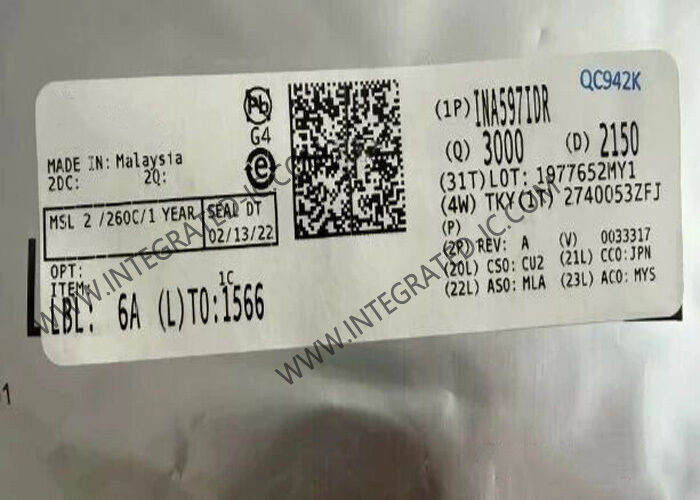

Large Image :  INA597IDR High-Precision 2MHz Wide Bandwidth Low Power Difference Amplifier Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA597IDR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

INA597IDR High-Precision 2MHz Wide Bandwidth Low Power Difference Amplifier Integrated Circuit Chip

Description
Part Number: INA597IDR Number Of Circuits: 1
Output Type: Rail-to-Rail Slew Rate: 18V/µs
-3db Bandwidth: 800 KHz Voltage - Input Offset: 28 µV
Highlight:

2MHz Wide Bandwidth Difference Amplifier

,

Low Power Difference Amplifier

,

High-Precision Difference Amplifier IC

INA597IDR Integrated Circuit Chip High-Precision 2MHz Low Power Wide-Bandwidth E-trim™ Difference Amplifier

Product Overview Of INA597

The INA597 is a low-power, wide-bandwidth difference amplifier designed for cost-sensitive applications. It combines a precision operational amplifier with a precision resistor network, delivering excellent resistor tracking that maintains gain accuracy and common-mode rejection across temperature variations.

Key characteristics such as low offset (200 µV maximum), low offset drift (5 µV/°C maximum), high slew rate (18 V/µs), and high capacitive load drive of up to 500 pF make the INA597 a robust, high-performance solution for high-voltage industrial applications.

Specifications Of INA597
Number of Channels 1 Channel
GBP – Gain Bandwidth Product 2 MHz
SR – Slew Rate 18 V/µs
CMRR – Common Mode Rejection Ratio 88 dB
Output Current per Channel 65 mA
Vos – Input Offset Voltage 14 µV
Supply Voltage – Max 36 V
Supply Voltage – Min 4.5 V
Operating Supply Current 1.1 mA
Minimum Operating Temperature −40 °C
Maximum Operating Temperature +125 °C
3 dB Bandwidth 0.8 MHz, 2 MHz
Gain 0.5 V/V, 2 V/V
Gain Error 0.01 %
Settling Time 1.3 µs, 1.7 µs
Key Features Of INA597
  • Low offset voltage: 200 µV (maximum)
  • Low offset voltage drift: ±5 µV/°C (maximum)
  • Low noise: 18 nV/√Hz at 1 kHz
  • Low gain error: ±0.03% (maximum)
  • High common-mode rejection: 88 dB (minimum)
  • Wide bandwidth: 2 MHz GBW
  • Low quiescent current: 1.1 mA per amplifier
  • High slew rate: 18 V/µs
  • High capacitive load drive capability: 500 pF
  • Wide supply range:
    • Single-supply: 4.5 V to 36 V
    • Dual-supply: ±2.25 V to ±18 V
  • Specified temperature range: −40 °C to +125 °C
  • Packages: 8-pin SOIC and VSSOP, 10-pin VSON
Applications Of INA597
  • Data acquisition (DAQ)
  • Sensor modules and tags for asset tracking
  • Flow transmitter
  • Optical module
  • Power supply module
  • AC drive position feedback
  • Servo drive position feedback
  • Voltage conditioning module
