IXFN56N90P Integrated Circuit Chip N-Channel 900V 56A PolarHV HiPerFETs MOSFET Transistors

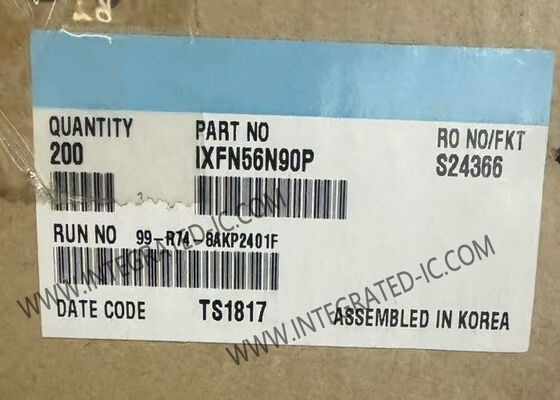

Large Image : IXFN56N90P Integrated Circuit Chip N-Channel 900V 56A PolarHV HiPerFETs MOSFET Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IXFN56N90P

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-227-4
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

IXFN56N90P Integrated Circuit Chip N-Channel 900V 56A PolarHV HiPerFETs MOSFET Transistors

Description

Part Number:	IXFN56N90P	Drain To Source Voltage (Vdss):	900 V
Current - Continuous Drain (Id) @ 25°C:	56A (Tc)	Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	135mOhm @ 28A, 10V	Vgs(th) (Max) @ Id:	6.5V @ 3mA
Highlight:	900V MOSFET Transistor , 56A N-Channel MOSFET , N-Channel Power MOSFET

IXFN56N90P Integrated Circuit Chip N-Channel 900V 56A PolarHV HiPerFETs MOSFET Transistors

Product Overview Of IXFN56N90P

The IXFN56N90P is an N-Channel 900V 56A PolarHV HiPerFETs MOSFET module. Polar™ HiPerFETs combine the strengths of the Polar Standard product family with a faster body diode, whose reverse recovery time (trr) is reduced to make them suitable for phase-shift bridge motor control and uninterruptible power supply (UPS) applications. This family of HiPerFETs provides lowest RDS(on), low RthJC, low Qg, and enhanced DV/DT capability.

Specifications Of IXFN56N90P

Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	900 V
Id – Continuous Drain Current	56 A
Rds On – Drain-Source Resistance	135 mOhms
Vgs – Gate-Source Voltage	−30 V, +30 V
Vgs th – Gate-Source Threshold Voltage	6.5 V
Minimum Operating Temperature	−55 °C
Maximum Operating Temperature	+150 °C
Pd – Power Dissipation	1 kW
Fall Time	38 ns
Rise Time	80 ns
Typical Turn-Off Delay Time	93 ns
Typical Turn-On Delay Time	74 ns
Unit Weight	30 g

Key Features Of IXFN56N90P

International standard packages
Dynamic dv/dt rating
Avalanche rated
Fast intrinsic rectifier
Low Q_G and R_DS(on)
Low drain-to-tab capacitance
Low package inductance

Advantages Of IXFN56N90P

High power density
Easy to mount
Space savings

Applications Of IXFN56N90P

Switch-mode and resonant-mode power supplies
DC-DC converters
Battery chargers
Uninterruptible power supplies (UPS)
AC motor drives
High-speed power switching applications
