IXFN60N80P Integrated Circuit Chip N-Channel Enhancement Mode 800V 53A Power MOSFET Transistors

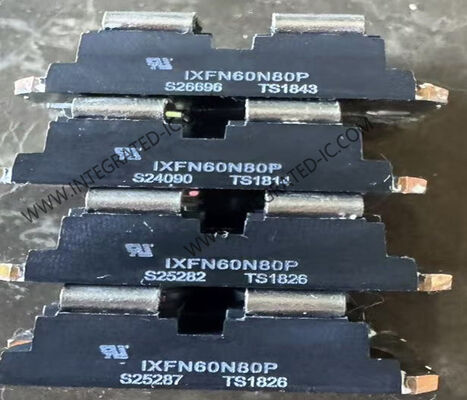

Large Image : IXFN60N80P Integrated Circuit Chip N-Channel Enhancement Mode 800V 53A Power MOSFET Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IXFN60N80P

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-227-4
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

IXFN60N80P Integrated Circuit Chip N-Channel Enhancement Mode 800V 53A Power MOSFET Transistors

Description

Part Number:	IXFN60N80P	Drain To Source Voltage (Vdss):	800 V
Current - Continuous Drain (Id) @ 25°C:	53A (Tc)	Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	140mOhm @ 30A, 10V	Vgs(th) (Max) @ Id:	5V @ 8mA
Highlight:	800V Power MOSFET Transistor , 53A N-Channel MOSFET , N-Channel Enhancement Mode Power MOSFET

IXFN60N80P Integrated Circuit Chip N-Channel Enhancement Mode 800V 53A Power MOSFET Transistors

Product Overview Of IXFN60N80P

The IXFN60N80P is an N-Channel Enhancement Mode 800V, 53A Power MOSFET Transistor. Polar™ HiPerFETs (IXF..) combine the strengths of the Polar Standard product family with a faster body diode, whose reverse recovery time (trr) is reduced to make them suitable for phase-shift bridge motor control and uninterruptible power supply (UPS) applications. This family of HiPerFETs provides the lowest R_DS(on), low R_thJC, low Q_g, and enhanced dv/dt capability.

Specifications Of IXFN60N80P

Transistor Polarity	N-Channel
Number of Channels	1 Channel
V_ds — Drain-Source Breakdown Voltage	800 V
I_d — Continuous Drain Current	53 A
R_ds(on) — Drain-Source Resistance	140 mΩ
V_gs — Gate-Source Voltage	−30 V, +30 V
Minimum Operating Temperature	−55 °C
Maximum Operating Temperature	+150 °C
P_d — Power Dissipation	1.04 mW
Configuration	Single
Fall Time	26 ns
Rise Time	29 ns
Typical Turn-Off Delay Time	110 ns
Typical Turn-On Delay Time	36 ns
Height	9.6 mm
Length	38.23 mm
Width	25.42 mm
Unit Weight	30 g

Key Features Of IXFN60N80P

International standard packages
Dynamic dv/dt rating
Avalanche rated
Fast intrinsic rectifier
Low Q_G and R_DS(on)
Low drain-to-tab capacitance
Low package inductance

Advantages Of IXFN60N80P

High power density
Easy to mount
Space savings

Applications Of IXFN60N80P

Switch-mode and resonant-mode power supplies
DC-DC converters
Battery chargers
Uninterruptible power supplies (UPS)
AC motor drives
High-speed power switching applications
