THS4541QRGTRQ1 Integrated Circuit Chip Automotive High-Speed Differential I/O Amplifier

THS4541QRGTRQ1 Integrated Circuit Chip Automotive High-Speed Differential I/O Amplifier
THS4541QRGTRQ1 Integrated Circuit Chip Automotive High-Speed Differential I/O Amplifier

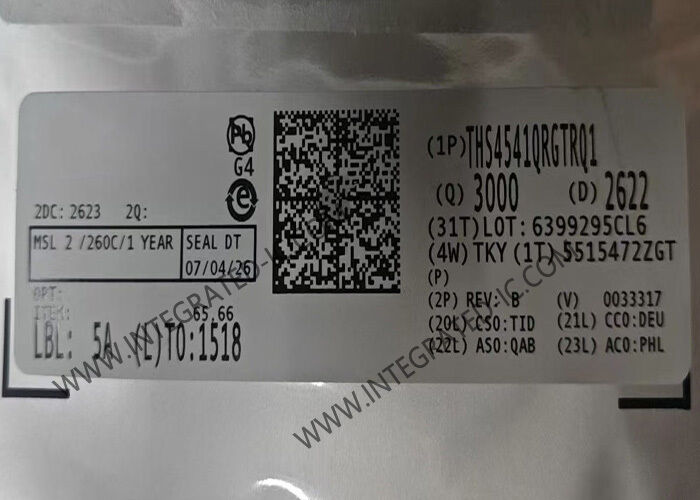

Large Image :  THS4541QRGTRQ1 Integrated Circuit Chip Automotive High-Speed Differential I/O Amplifier

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: THS4541QRGTRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-16
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

THS4541QRGTRQ1 Integrated Circuit Chip Automotive High-Speed Differential I/O Amplifier

Description
Part Number: THS4541QRGTRQ1 Number Of Circuits: 1
Slew Rate: 1500V/µs Gain Bandwidth Product: 850 MHz
-3db Bandwidth: 620 MHz Current - Input Bias: 12 µA
Highlight:

Automotive AEC-Q100 Qualified Differential Amplifier

,

850 MHz Gain Bandwidth Differential Amplifier

,

1500V/µs Slew Rate Fully Differential Amplifier

THS4541QRGTRQ1 Integrated Circuit Chip Automotive High-Speed Differential I/O Amplifier

Product Overview Of THS4541

The THS4541 is a low-power, voltage-feedback, fully differential amplifier (FDA) featuring an input common-mode range that extends below the negative rail and rail-to-rail output. It is engineered for low-power data acquisition systems where high density is critical in high-performance analog-to-digital converter (ADC) or digital-to-analog converter (DAC) interface designs.

Specifications Of THS4541
Number of Channels 1 Channel
GBP – Gain Bandwidth Product 850 MHz
SR – Slew Rate 1.5 kV/µs
CMRR – Common Mode Rejection Ratio 100 dB
Output Current per Channel 100 mA
Ib – Input Bias Current 13 µA
Vos – Input Offset Voltage 450 µV
Supply Voltage – Max 5.4 V
Supply Voltage – Min 2.7 V
Operating Supply Current 10.1 mA
Minimum Operating Temperature −40 °C
Maximum Operating Temperature +125 °C
3 dB Bandwidth 150 MHz
en – Input Voltage Noise Density 2.2 nV/√Hz
Gain 0.982 V/V
In – Input Noise Current Density 1.9 pA
Input Type Rail-to-Rail
Ios – Input Offset Current 150 nA
PSRR – Power Supply Rejection Ratio 85 dB
Settling Time 8 ns
Unit Weight 50 mg
Key Features Of THS4541
Automotive Qualification
  • AEC-Q100 qualified for automotive applications
  • Temperature grade 1: −40 °C to +125 °C, TA
Performance
  • Bandwidth: 500 MHz (G = 2 V/V)
  • Gain bandwidth product: 850 MHz
  • Slew rate: 1500 V/µs
  • HD2: −95 dBc at 10 MHz (2 VPP, RL = 500 Ω)
  • HD3: −90 dBc at 10 MHz (2 VPP, RL = 500 Ω)
  • Input voltage noise: 2.2 nV/√Hz (f > 100 kHz)
  • Low offset drift: ±0.5 µV/°C (typ)
  • Negative rail input (NRI)
  • Rail-to-rail output (RRO)
Power Supply
  • Single-supply voltage range: 2.7 V to 5.4 V
  • Split-supply voltage range: ±1.35 V to ±2.7 V
  • Quiescent current: 10.1 mA (5 V supply)
  • Power-down capability: 2 µA (typ)
Applications Of THS4541
  • Mechanically scanning LIDAR
  • Solid-state LIDAR
  • Thermal imaging cameras
  • Microbolometer cameras
  • Time-of-flight (ToF) cameras
