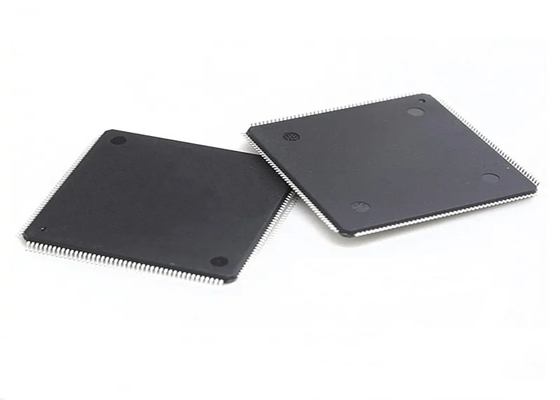

Microcontroller MCU STM32H735ZGT6 Up To 550MHz 32-Bit Microcontrollers LQFP-144

Microcontroller MCU STM32H735ZGT6 Up To 550MHz 32-Bit Microcontrollers LQFP-144​

Description

STM32H735ZGT6 devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 550 MHz. The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. The Cortex -M7 core includes 32 Kbytes of instruction cache and 32 Kbytes of data cache. STM32H735xG devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

Specification Of STM32H735ZGT6

Features

• 32-bit Arm® Cortex®-M7 with double-precision FPU and L1 cache
• Supports a single cache line access from 256-bit embedded flash; frequency up to 400MHz, MPU, 856DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1) and DSP instructions
• Up to 2Mbyte flash memory with simultaneous read and write capability
• 1.62V to 3.6V Application Power and I/O
• Dedicated USB power supply with embedded 3.3V internal regulator to power internal PHY
• Total current consumption as low as 4µA
