Product Details:
|
| Part Number: | SAK-TC387QP-160F300S AE | Core Processor: | TriCore™ |
|---|---|---|---|
| Core Size: | 32-Bit Quad-Core | Mounting Type: | Surface Mount |
| Package: | 292-LFBGA | Oscillator Type: | Internal |
| Highlight: | 292-LFBGA Integrated Circuit Chip,Integrated Circuit Chip Microcontroller,SAK-TC387QP-160F300S AE |
||

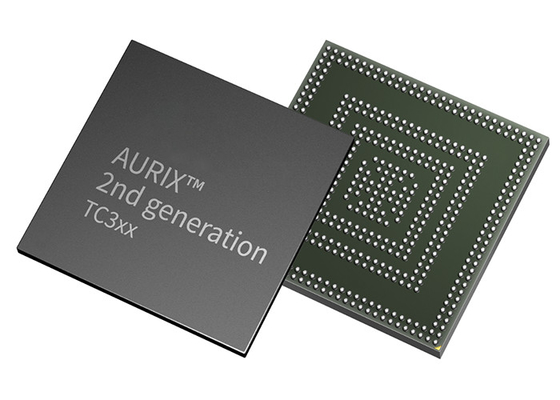

Integrated Circuit Chip SAK-TC387QP-160F300S AE 32-bit AURIX TriCore Microcontroller
Product Description Of SAK-TC387QP-160F300S AE
SAK-TC387QP-160F300S AE belongs to the AURIX™ TC38xQP family . AURIX™ second generation (TC3xx) comes back with an increase in performance, memory sizes, connectivity and more scalability to address the new automotive and industrialtrends and challenges. This family has more than 20 products to provide the most scalable portfolio of safety microcontroller. In terms of performance, T38x offers 4 cores running at 300 MHz and up to 1.5 MBytes embedded RAM, and consuming below 2 W. Its mirrored embedded flash banks offers A/B swap capabilities.
Specification Of SAK-TC387QP-160F300S AE
|
Product Status |
Active |
|
Speed |
300MHz |
|
Connectivity |
ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI, QSPI, SENT |
|
Peripherals |
DMA, I²S, PWM, WDT |
|
Program Memory Size |
10MB (10M x 8) |
|
Program Memory Type |
FLASH |
|
EEPROM Size |
512K x 8 |
|
RAM Size |
1.53K x 8 |
|
Voltage - Supply (Vcc/Vdd) |
2.97V ~ 5.5V |
|
Data Converters |
A/D 142 SAR, Sigma-Delta |
|
Operating Temperature |
-40°C ~ 125°C (TA) |
Summary of Features of SAK-TC387QP-160F300S AE
4 TriCore™ running at 300 MHz (with 2 additional checker cores delivering 2700 DMIPS)
Supporting floating point and fix point with all cores
10 MB flash/ECC protection
1568 KB SRAM / ECC protection
1 Gbit Ethernet
12x CAN FD, 2x FlexRay, 24x LINs, 6x QSPI, 2x I²C, 25x SENT, 5x SPI, 1x HSSL, 3x MSC
eVita full HSM (ECC256 and SHA2)
LFBGA-292 package
ISO 26262 ASIL-D support
AUTOSAR 4.2 support
Single voltage supply 5 V or 3.3 V
165°C junction temperature
Standby mode controller
Temperature :-40°C to 125°C
Potential Applications of SAK-TC387QP-160F300S AE
Industrial applications:
Industrial robots
Solar panels
Wind turbine inverters
IO controller
Servo drives
Elevators
Inverters
Connectivity Applications:
Wireless Charging Solution
Advanced gateway architecture
Telematic Control unit and V2X
High-feature Body Domain Control unit
