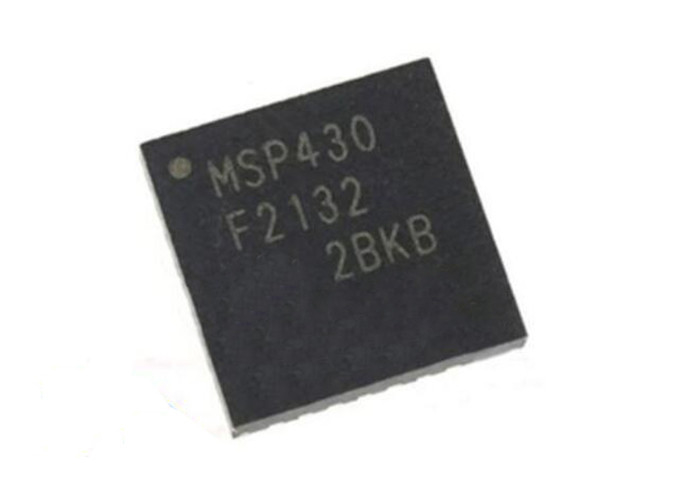

16MHz Integrated Circuit Chip MSP430F2132IRHBR 16Bit Microcontroller IC VQFN32

16MHz Integrated Circuit Chip MSP430F2132IRHBR 16Bit Microcontroller IC VQFN32​

Product Description Of MSP430F2132IRHBR

MSP430F2132IRHBR is ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.
MSP430F2132IRHBR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

Specification Of MSP430F2132IRHBR

Features Of MSP430F2132IRHBR

• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%
• Internal Very-Low-Power Low-Frequency Oscillator
• High-Frequency (HF) Crystal up to 16 MHz
• 10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller

Package Of MSP430F2132IRHBR

Other Supply Product Types
