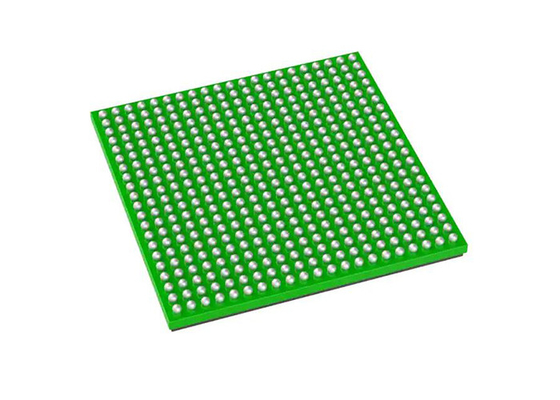

Single Core AM6441BSEFHAALV 64Bit Arm Cortex A53 Microprocessors IC FCBGA441

Single Core AM6441BSEFHAALV 64Bit Arm Cortex A53 Microprocessors IC FCBGA441​

Product Description Of AM6441BSEFHAALV

AM6441BSEFHAALV is an extension of the Sitara™ Industrial-grade family of heterogeneous Arm® processors. AM6441BSEFHAALV is built for industrial applications, such as motor drives and Programmable Logic Controllers (PLCs), which require a unique combination of real-time processing and communications with applications processing. AM6441BSEFHAALV combines two instances of the Sitara device's gigabit TSN-enabled PRU-ICSSG with up to two Arm® Cortex®-A53 cores, up to four Cortex-R5F MCUs, and a Cortex-M4F MCU.

Specification Of AM6441BSEFHAALV

Features Of AM6441BSEFHAALV

• 1× Dual 64-bit Arm Cortex-A53 microprocessor subsystem at up to 1.0 GHz
• Dual-core Cortex-A53 cluster with 256KB L2 shared cache with SECDED ECC
• Each A53 Core has 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with Parity protection
• 2× gigabit Industrial Communication Subsystems (PRU_ICSSG)
• Supports Profinet IRT, Profinet RT, EtherNet/IP, EtherCAT, Time-Sensitive Networking (TSN), and more
• Backward compatibility with 10/100Mb PRU_ICSS
• 6 PRU RISC cores per PRU_ICSSG each core having:
• Instruction RAM with ECC
• Broadside RAM
• Multiplier with optional accumulator (MAC)
• CRC16/32 hardware accelerator
• Byte swap for Big/Little Endian conversion
• SUM32 hardware accelerator for UDP checksum
• Task Manager for preemption support

Applications Of AM6441BSEFHAALV

• Motor Drives
• Remote I/O
• Programmable Logic Controller (PLC)

Other Electronic Components In Stock

​FAQ

Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
