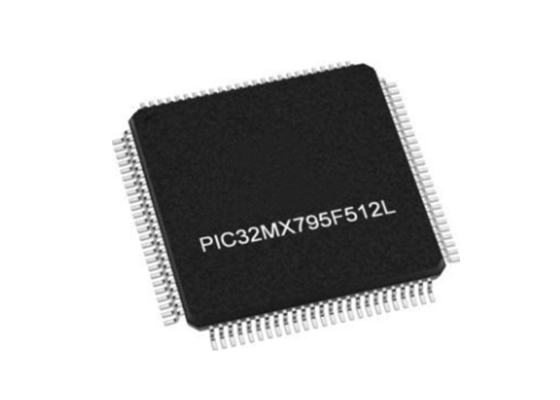

512KB Flash PIC32MX795F512L-80I/PT 32-Bit Single-Core Microcontrollers - MCU 100-TQFP

512KB Flash PIC32MX795F512L-80I/PT 32-Bit Single-Core Microcontrollers - MCU 100-TQFP

Product Description Of PIC32MX795F512L-80I/PT

PIC32MX795F512L-80I/PT with integrated 10/100 Mbit Ethernet MAC and industry-leading connectivity and peripheral options enables you to build embedded connectivity-based applications.

PIC32MX795F512L-80I/PT are fully supported by the MPLAB® Harmony integrated software framework, which features software solutions to accelerate your application development.

Specification Of PIC32MX795F512L-80I/PT

Features Of PIC32MX795F512L-80I/PT

• 80MHz/105DMIPS, 32-bit MIPS M4K® Core
• USB 2.0 On-The-Go Peripheral with integrated PHY
• 10/100 Ethernet MAC with MII/RMII Interfaces
• 2 x CAN2.0b modules with 1024 buffers
• 8 Dedicated DMA Channels for USB OTG, Ethernet, and CAN
• 5 Stage pipeline, Harvard architecture
• MIPS16e mode for up to 40% smaller code size
• Single cycle multiply and hardware divide unit
• 32 x 32-bit Core Registers
• 32 x 32-bit Shadow Registers
• Fast context switch and interrupt response
• 512K Flash (plus 12K boot Flash)
• 128K RAM (can execute from RAM)
• 8 Channel General Hardware DMA Controller
• Flash prefetch module with 256 Byte cache
• Lock instructions or data in cache for fast access
• Programmable vector interrupt controller
• Fast and Accurate 16 channel 10-bit ADC,
• Max 1 Mega sample per second at +/- 1LSB, conversion available during SLEEP & IDLE
• RUN, IDLE, and SLEEP modes
• Multiple switchable clock modes for each power mode, enables optimum power settings
• iFlow Trace: Non-intrusive Hardware Instruction Trace port (5 Wires)
• 8 hardware breakpoints (6 Instruction and 2 Data)
• 2 wire programming and debugging interface
• JTAG interface supporting Programming, Debugging and Boundary scan
• Fail-Safe Clock Monitor - allows safe shutdown if clock fails
• 2 Internal oscillators (8MHz & 31KHz)
• Hardware RTCC (Real-Time Clock and Calendar with Alarms)
• Watchdog Timer with separate RC oscillator
• Pin compatible with 16-bit PIC® MCUs
• Serial Communication Modules allow flexible UART/SPI/I2C™ configuration

Block Diagram Of PIC32MX795F512L-80I/PT

Pin Configuration Of PIC32MX795F512L-80I/PT
